MEP coordination is the controlled integration of mechanical, electrical, plumbing, fire and low-current services into finite building space while preserving hydraulic, electrical, thermal, acoustic, fire-safety and maintenance performance.
GUIDE MAP
Read the discipline visually, then go into the engineering detail.
Every image below is activity-specific. No repeated generic placeholder sheets are used in this guide.
01

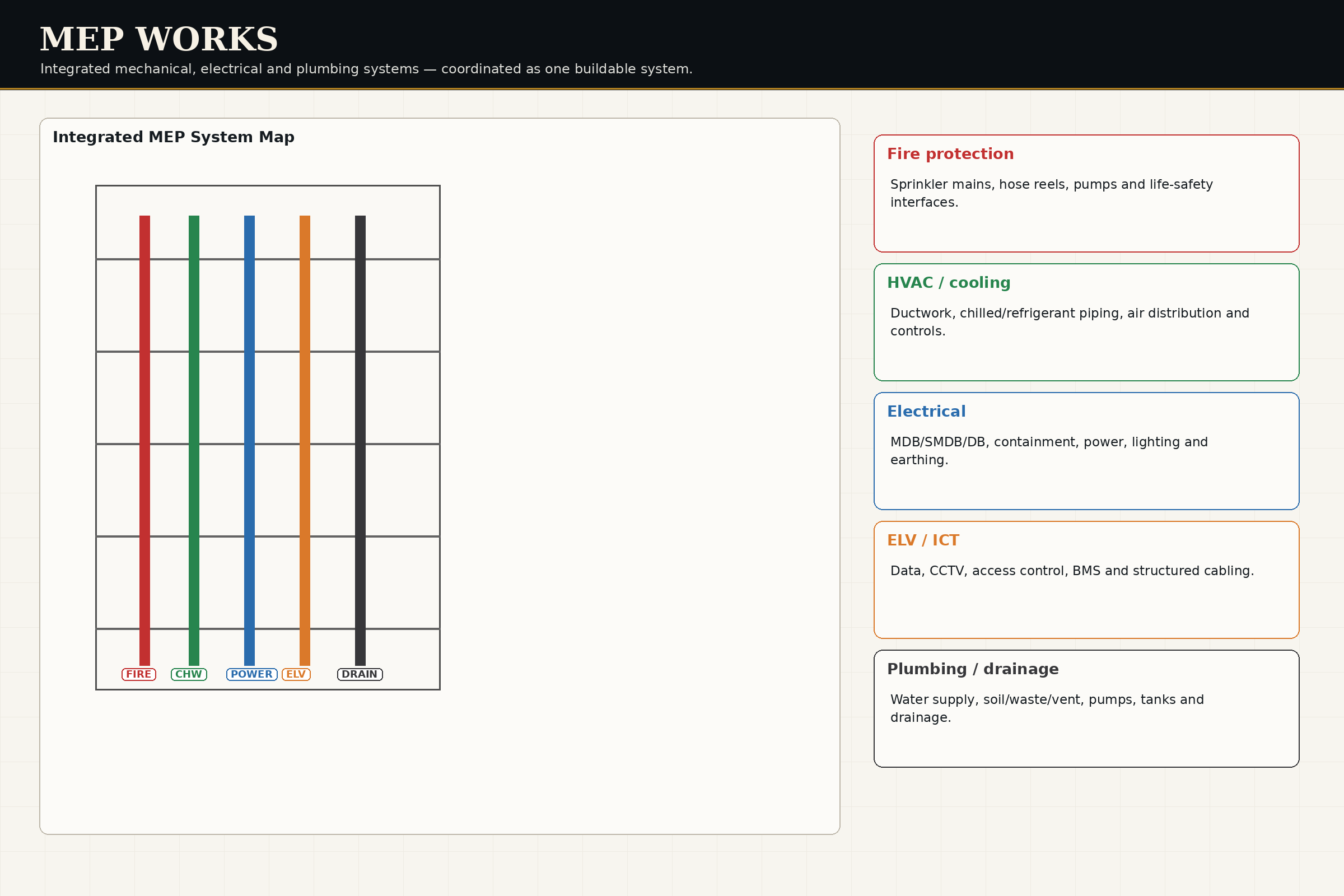

System Overview
MEP combines building-services disciplines: power, lighting, ELV, HVAC, water supply, drainage, controls and related interfaces. In fit-out projects, the challenge is often not the individual service but how many services share limited ceiling and shaft space. Supports, clearances, maintenance zones, firestopping and access therefore matter as much as the pipe or cable itself.
Open section →
02

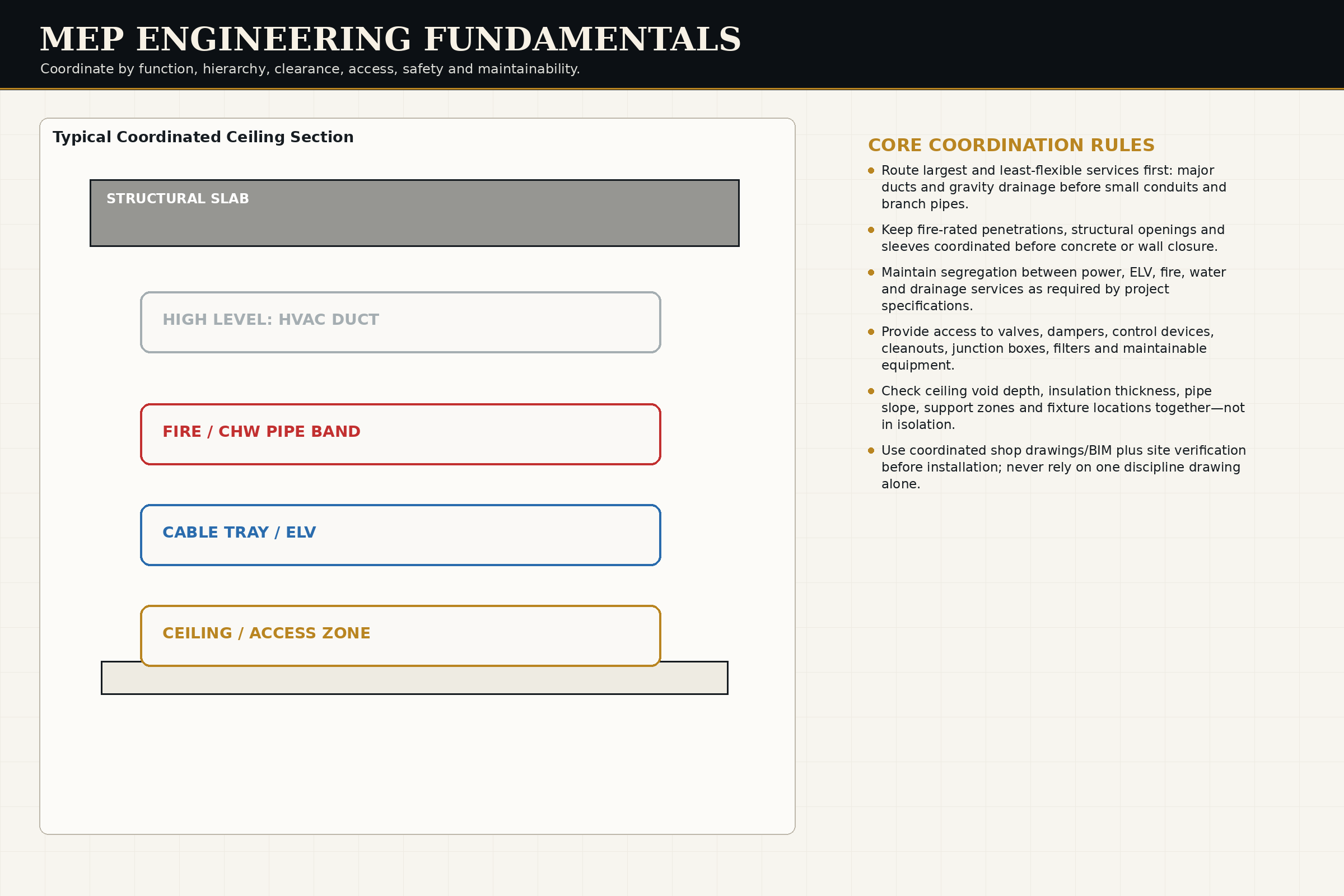

Engineering Fundamentals
Verify existing capacities and connection points before design freeze
Open section →
03
Execution Workflow
Check utility / landlord capacity, tie-in points and equipment serving the affected area
Open section →
04
Technical Chapters
11 individual sub-activity drawings with discipline-specific notes and inspection controls.
Open section →
05

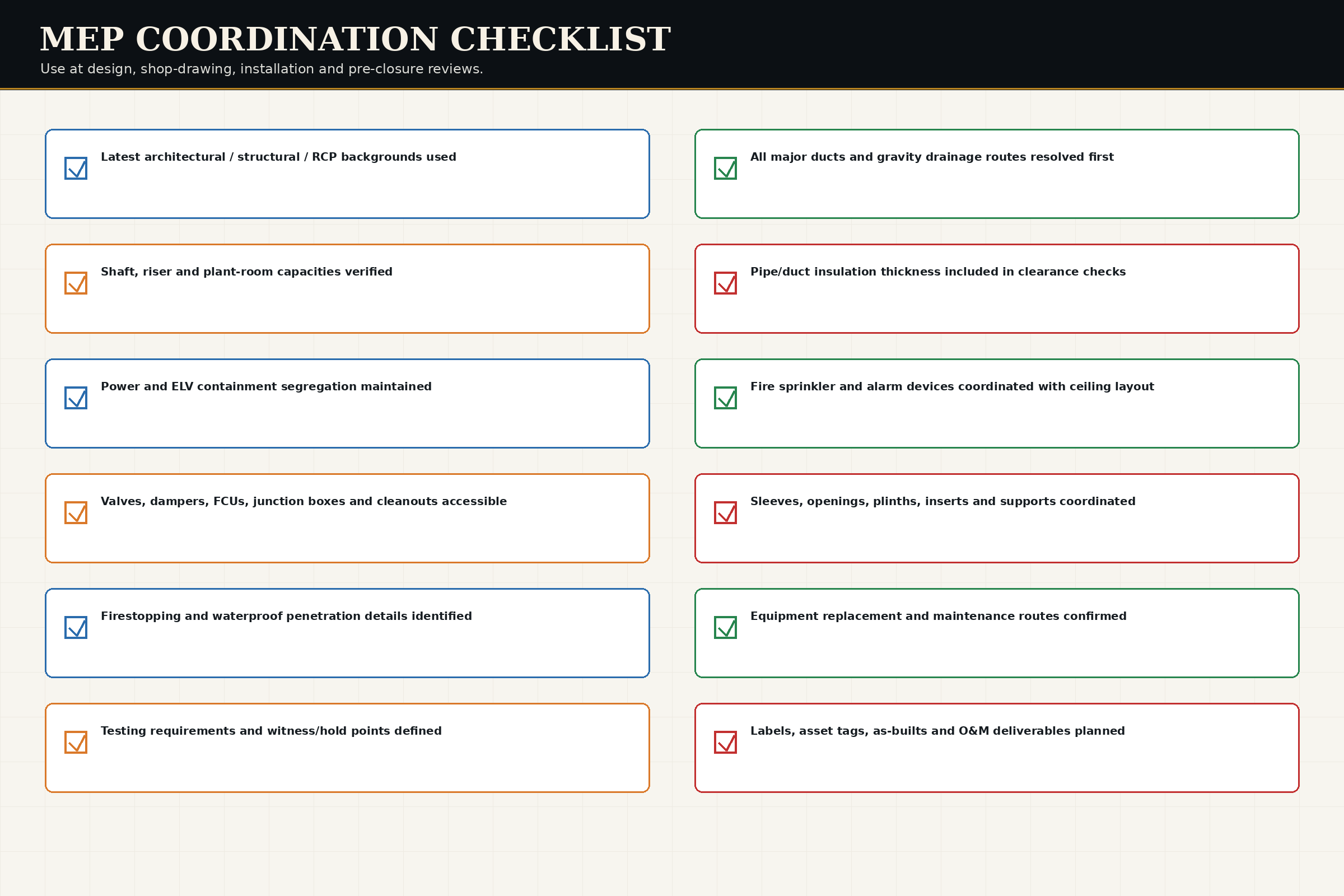

QA/QC
Routes, levels and clearances match coordinated drawings
Open section →
06

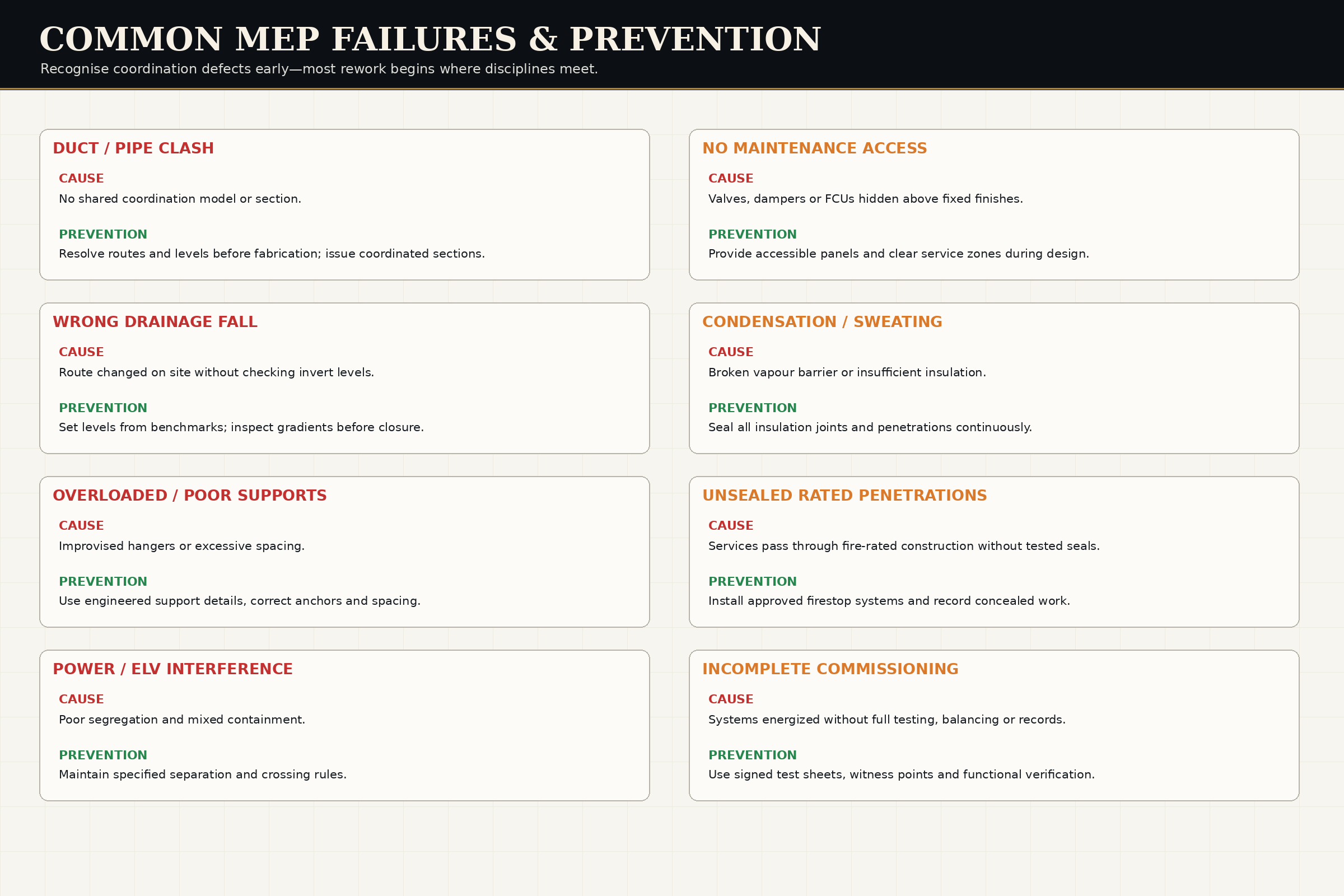

Failure Analysis
Routing services before checking ceiling and structural constraints
Open section →
07

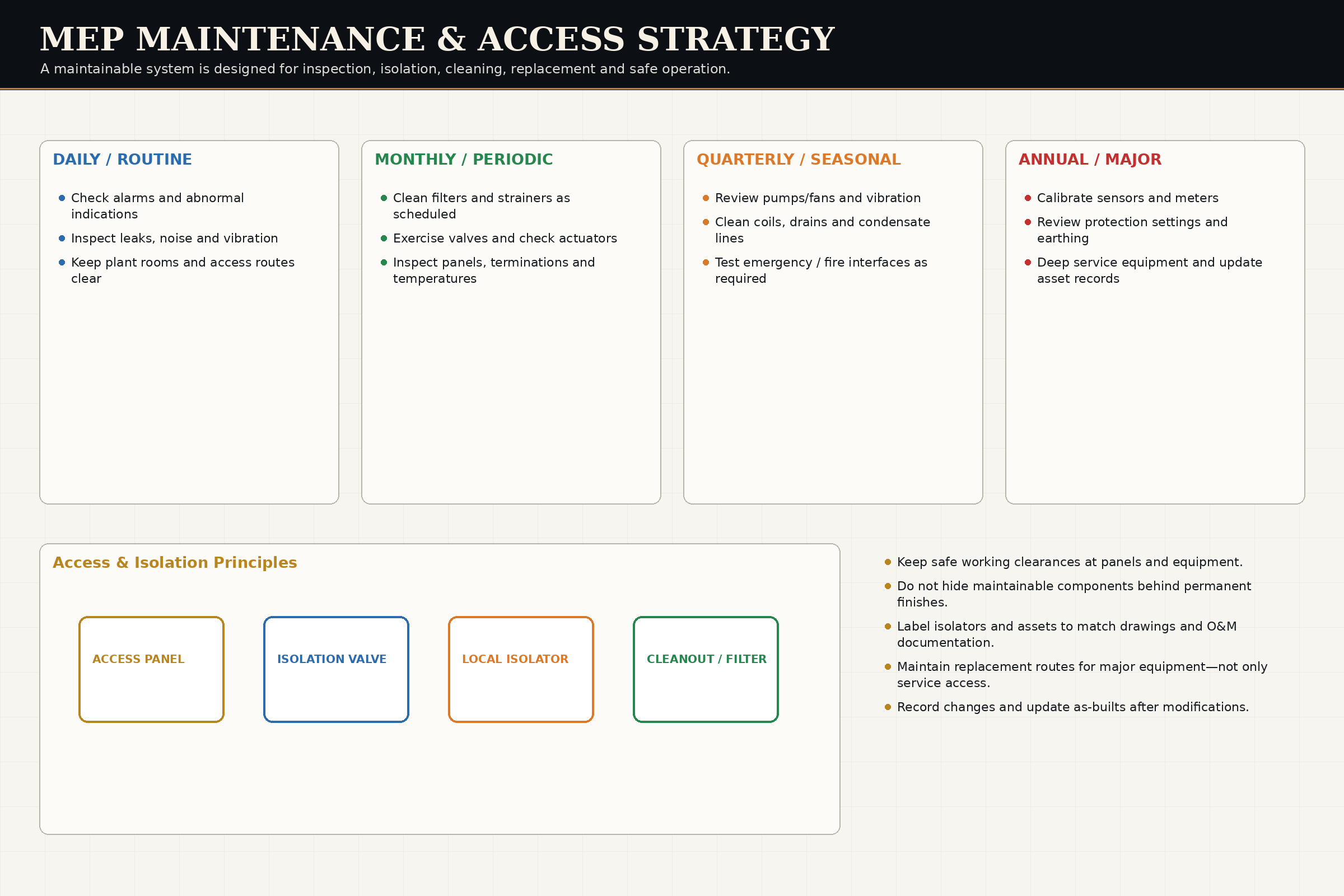

Maintenance
Follow planned preventive maintenance based on equipment criticality and manufacturer intervals
Open section →
08

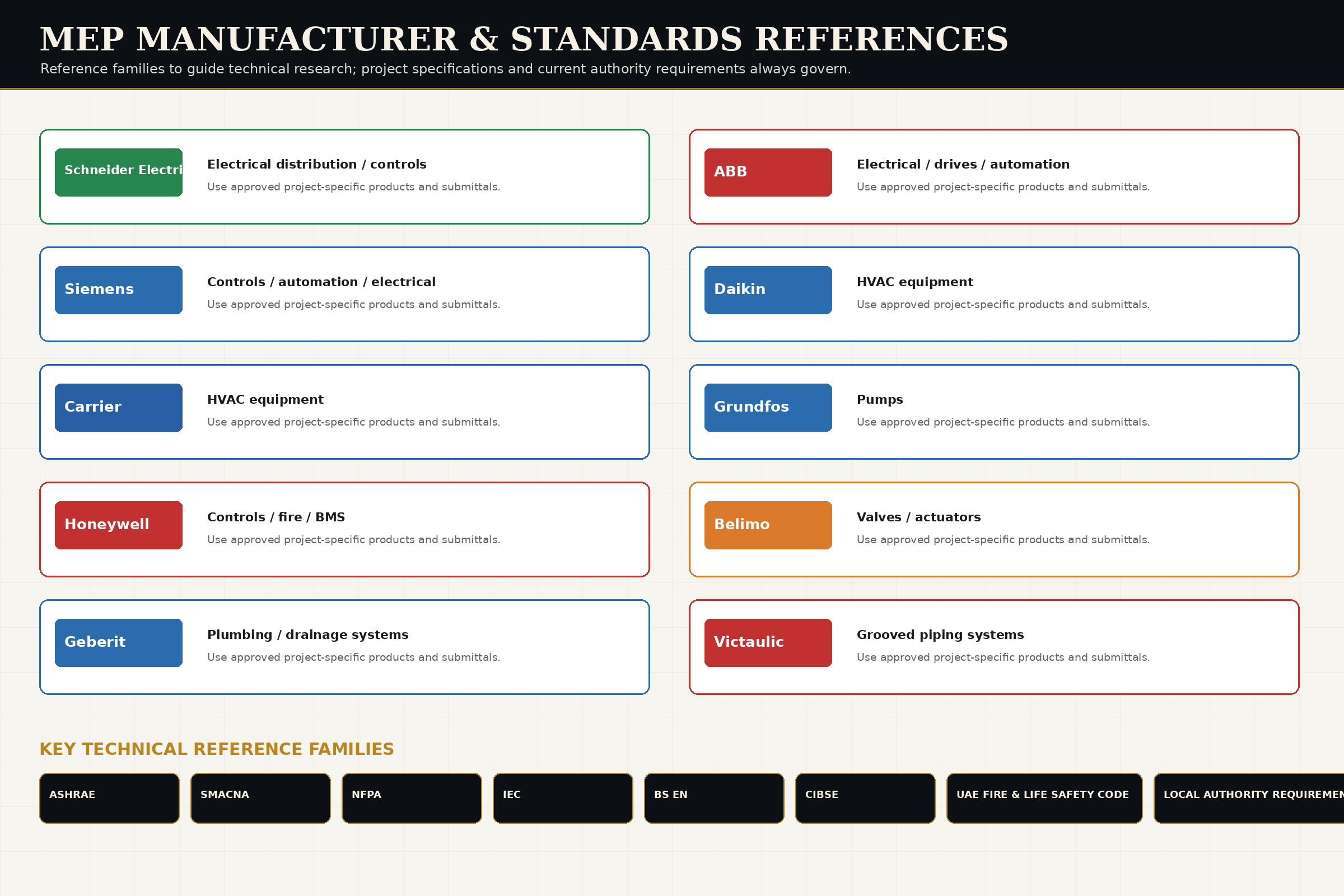

Standards & Brands
Current local authority and utility regulations applicable to the project and emirate
Open section →01 · SYSTEM OVERVIEW
What this activity is
What this activity is
MEP combines building-services disciplines: power, lighting, ELV, HVAC, water supply, drainage, controls and related interfaces. In fit-out projects, the challenge is often not the individual service but how many services share limited ceiling and shaft space. Supports, clearances, maintenance zones, firestopping and access therefore matter as much as the pipe or cable itself.
What to expect
Expect MEP work to begin with load / demand confirmation and coordination—not with technicians immediately running cables and pipes. Existing capacity, points of connection, authority constraints and ceiling space must be verified. The strongest MEP installations are coordinated in drawings, installed with access and identification, tested before closure and commissioned before handover.
01Verify existing capacities and connection points before design freeze
02Reserve service zones and access envelopes before routing individual trades
03Coordinate drainage falls, duct depths, cable bend radii and valve/damper access in 3D
04Inspect and test concealed services before ceilings and walls close
05Balance air/water systems against design duties rather than visual operation
06Record set-points, test results, labels, O&M information and as-builts at handover
02 · ENGINEERING FUNDAMENTALS
Understand why the system behaves the way it does.
01
Hydraulic head loss is cumulative through pipe length, fittings, valves and equipment; pump duty must be checked at the design flow and total dynamic head
02
Three-phase apparent power S ≈ √3 × V × I; final cable/protection design must also consider diversity, derating, fault level and voltage drop
03
Airflow relation Q = V × A; diffuser/grille free area and duct velocity affect pressure loss and noise
04
Drainage gradient = vertical fall / horizontal run; use the approved code and pipe-system design rather than a universal slope
Commissioning should be planned from design. Provide measurable points, balancing devices, access and control sequences so the completed system can be tested without dismantling finished work.
Concealed-work inspection is a hold point. Supports, pressure tests, insulation continuity, firestopping, cable segregation and identification should be verified before closure.
03 · EXECUTION WORKFLOW
Six progressive stages from preparation to verified handover.
Open any plate to read the full-resolution technical notes.
01Design Review
02Coordinated Shop Drawings
03Sleeves Builders Work First Fix
04Service Installation
05Testing Commissioning
06Final Balancing Handover

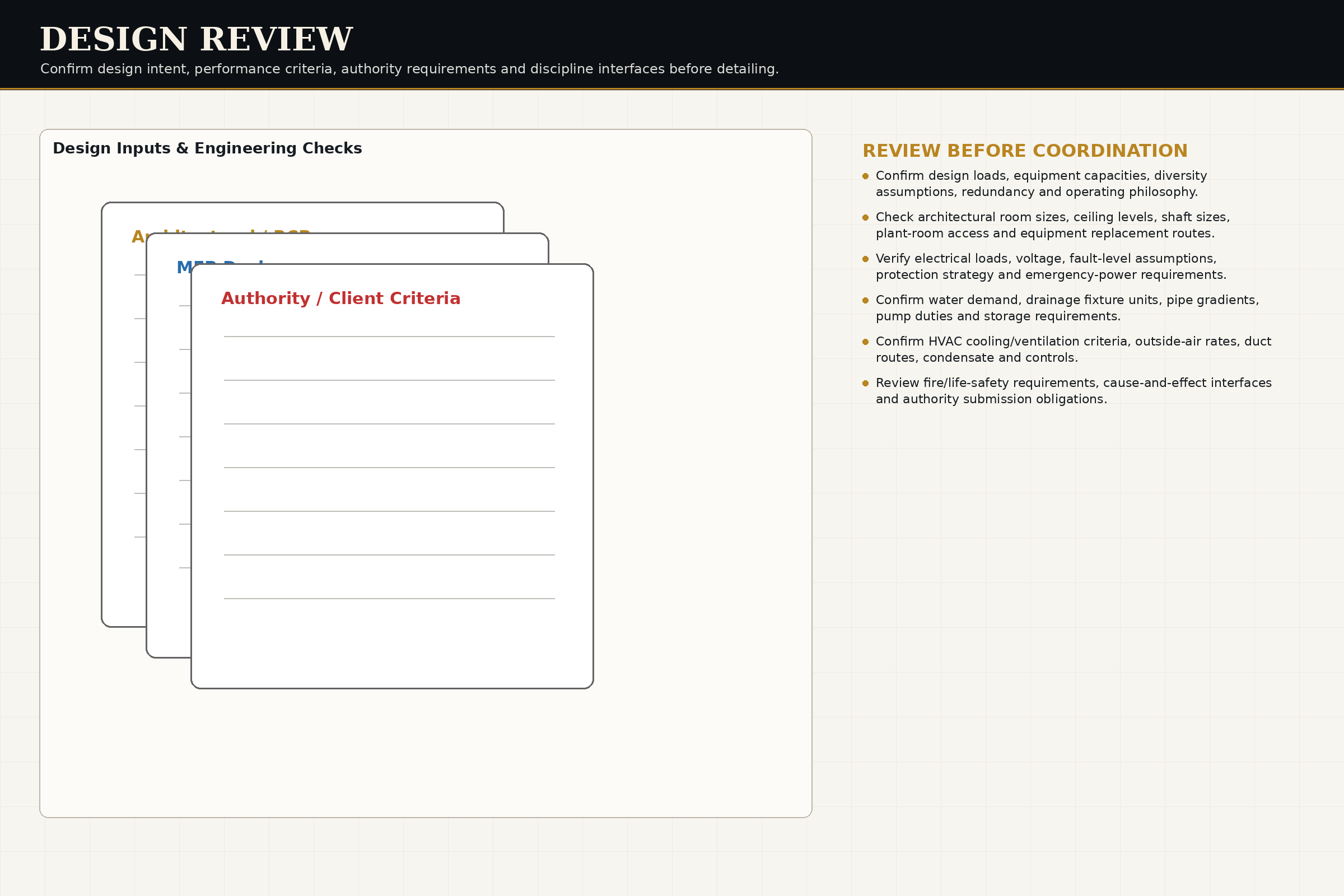

STAGE 01
Design Review
Check utility / landlord capacity, tie-in points and equipment serving the affected area
Engineering intent
Provide serviceable access to valves, filters, FCUs, dampers, controls, cleanouts and panels
Inspection / hold point
Routes, levels and clearances match coordinated drawings
Best practice
Coordinate the ceiling in 3D / reflected ceiling drawings for congested areas
Failure to avoid
Routing services before checking ceiling and structural constraints
Handover / maintenance
Follow planned preventive maintenance based on equipment criticality and manufacturer intervals
STAGE 02

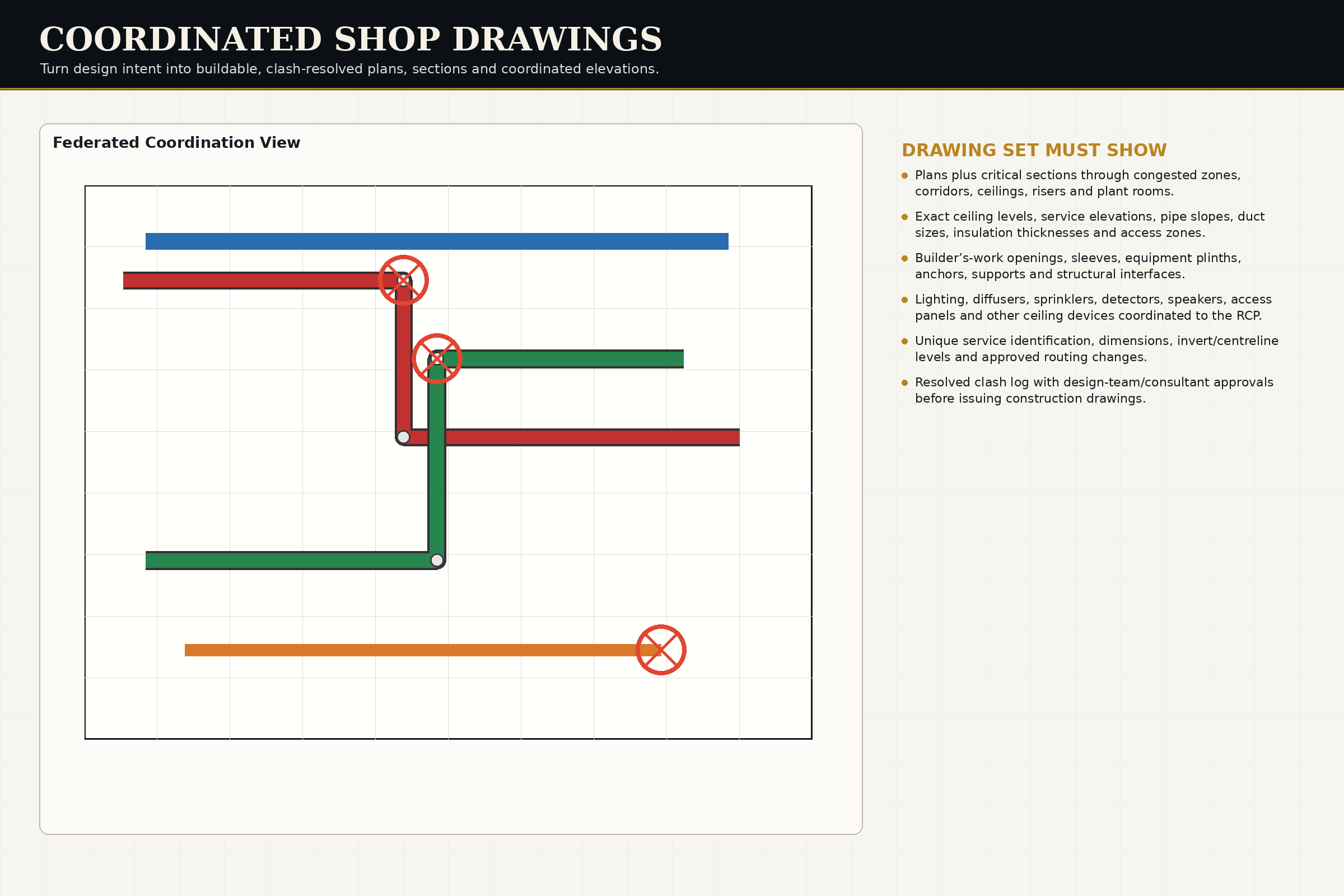

Coordinated Shop Drawings
Resolve routes, levels, access, builders work openings, supports and control interfaces in drawings
Engineering intent
Use approved load-rated supports; do not suspend unrelated services from ceilings or each other
Inspection / hold point
Supports and anchors are approved and properly spaced
Best practice
Keep maintainable equipment accessible without damaging finishes
Failure to avoid
Hiding valves, dampers or cleanouts behind permanent finishes
Handover / maintenance
Clean / replace filters and inspect condensate drainage routinely
STAGE 03

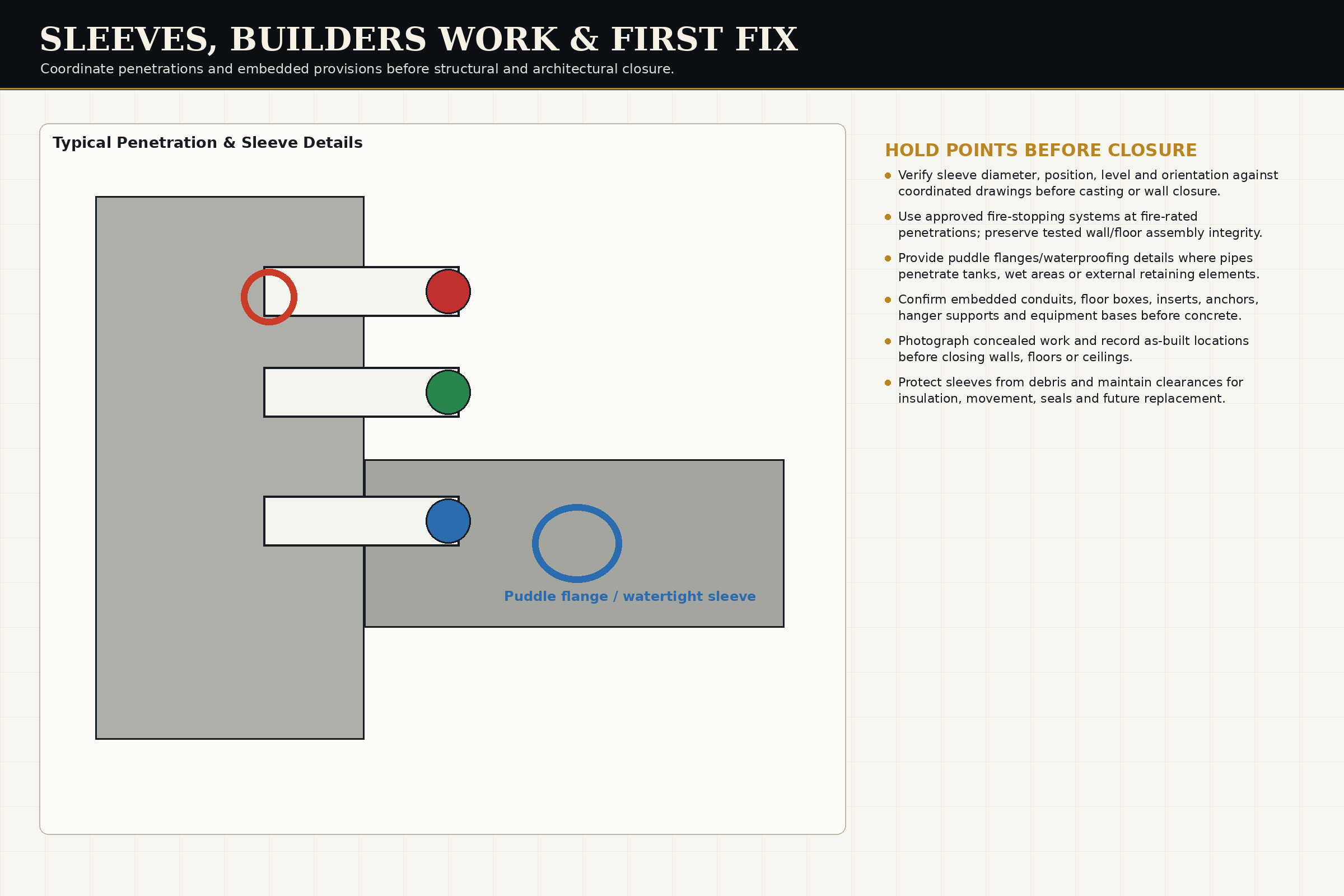

Sleeves Builders Work First Fix
Install containment, sleeves, supports, pipes, ducts and concealed wiring before architectural closure
Engineering intent
Maintain service clearances, separation, slopes, bend radii and fire-compartment integrity
Inspection / hold point
Penetrations through rated assemblies are correctly firestopped
Best practice
Use proper firestopping at every rated wall / floor penetration
Failure to avoid
Using architectural ceiling wires or frames to support MEP services
Handover / maintenance
Exercise valves and verify isolation points remain accessible and labelled

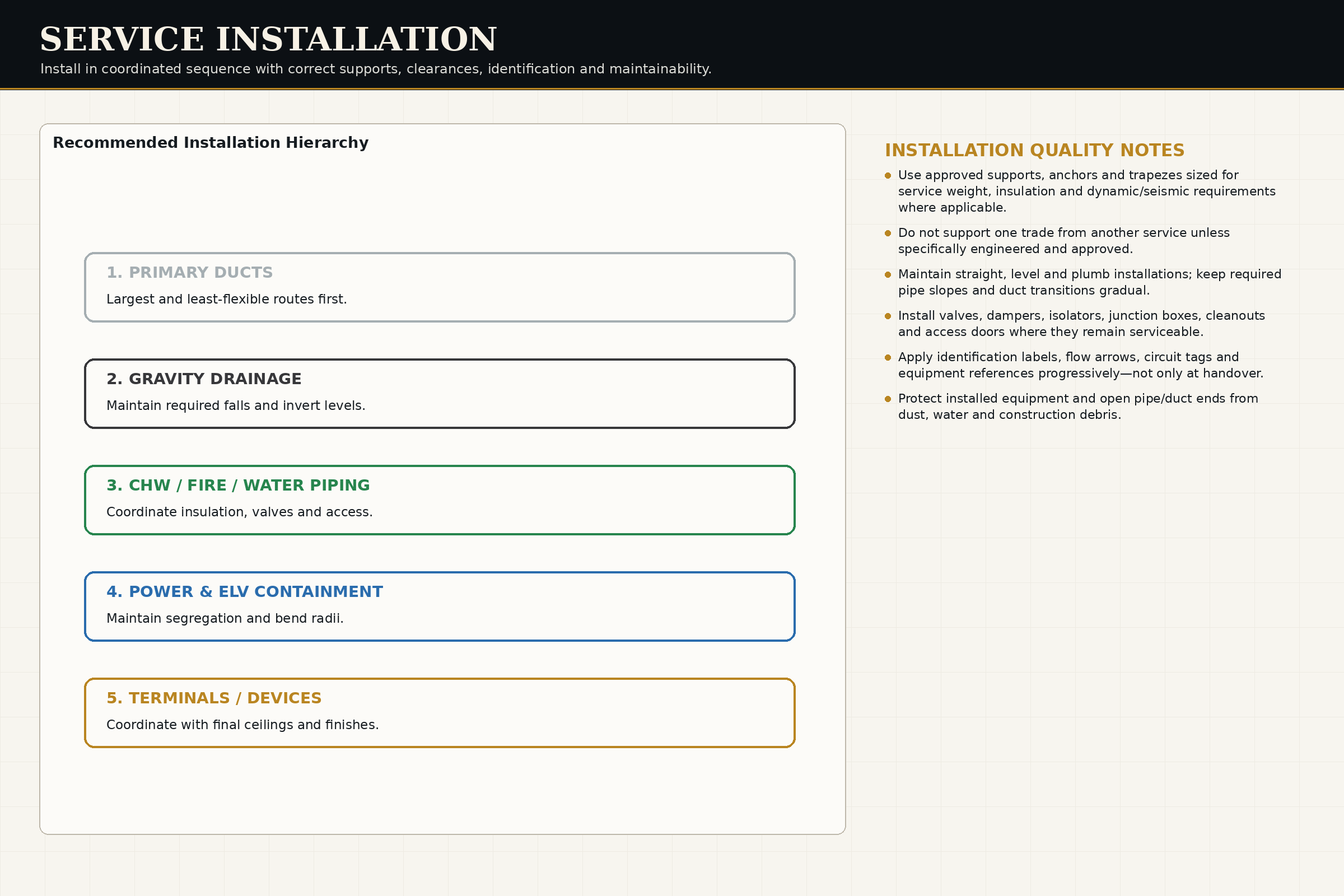

STAGE 04
Service Installation
Pressure-test, insulation-test and inspect concealed systems before ceilings and walls are closed
Engineering intent
Label DBs, circuits, isolators, valves, pipes, ducts and controls consistently
Inspection / hold point
Testing is complete before concealment and certificates are filed
Best practice
Complete pressure and electrical tests before concealment
Failure to avoid
Poorly sealed insulation causing condensation and ceiling damage
Handover / maintenance
Thermally scan / inspect electrical terminations where appropriate for critical loads

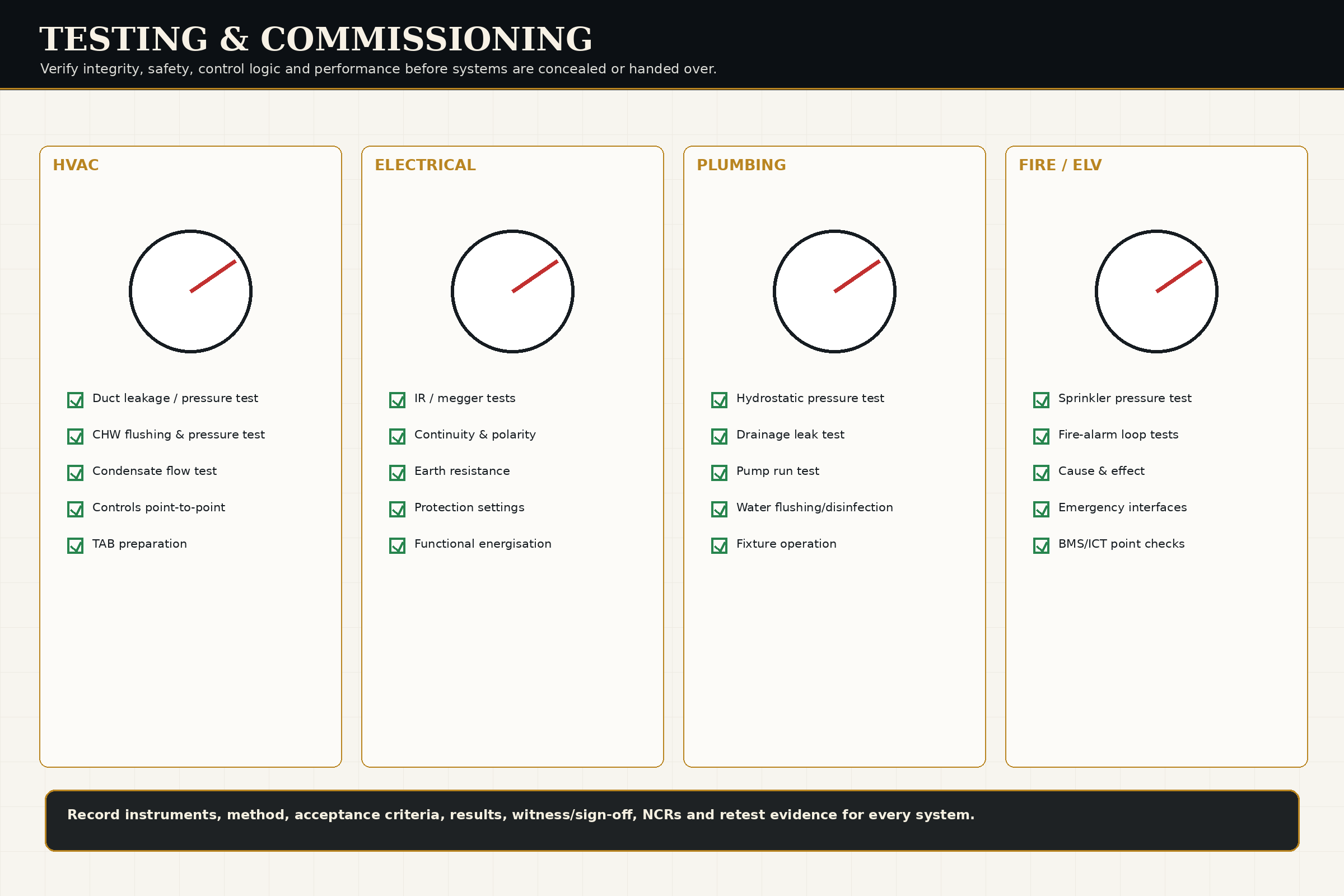

STAGE 05
Testing Commissioning
Install fixtures, diffusers, grilles, switches, controls, panels and final connections
Engineering intent
Complete concealed-system testing before closure and retain signed records
Inspection / hold point
Equipment, valves, panels and isolators are accessible and labelled
Best practice
Label services during installation, not only at handover
Failure to avoid
Closing penetrations with non-approved materials in rated assemblies
Handover / maintenance
Keep commissioning setpoints and balancing values as baseline records

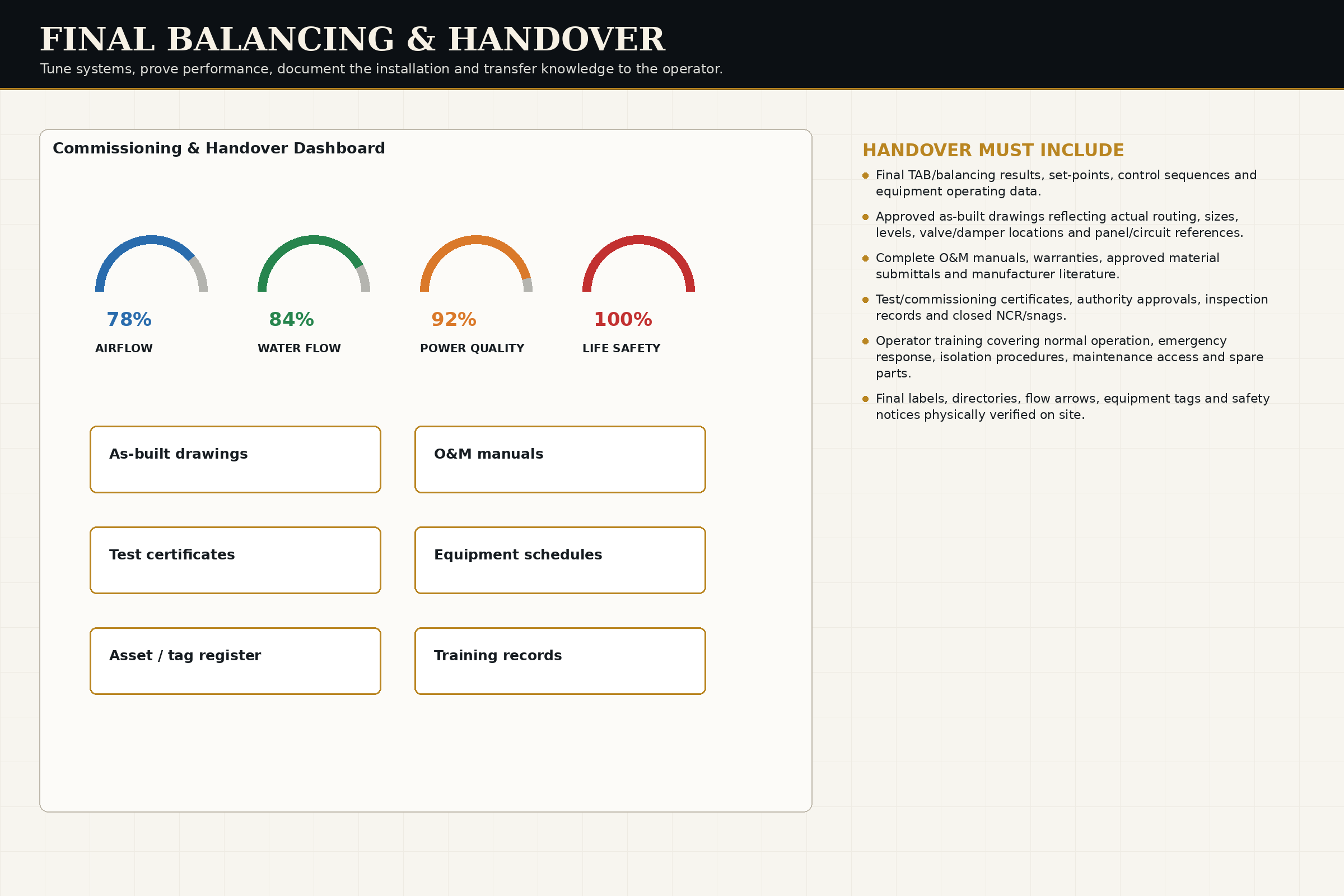

STAGE 06
Final Balancing Handover
Balance, test functional sequences, label assets and issue records, as-builts and O&M information
Engineering intent
Insulate chilled / cold services continuously and seal vapour barriers at joints
Inspection / hold point
Commissioning results match design intent and operating requirements
Best practice
Commission under realistic operating conditions and record final settings
Failure to avoid
Treating testing and commissioning as a paperwork exercise after practical completion
Handover / maintenance
Update as-built drawings when future modifications change routes or equipment
04 · TECHNICAL CHAPTERS
11 detailed sub-activities for MEP Works.
The file naming and page mapping are one-to-one: each technical subject has its own individual high-resolution image.

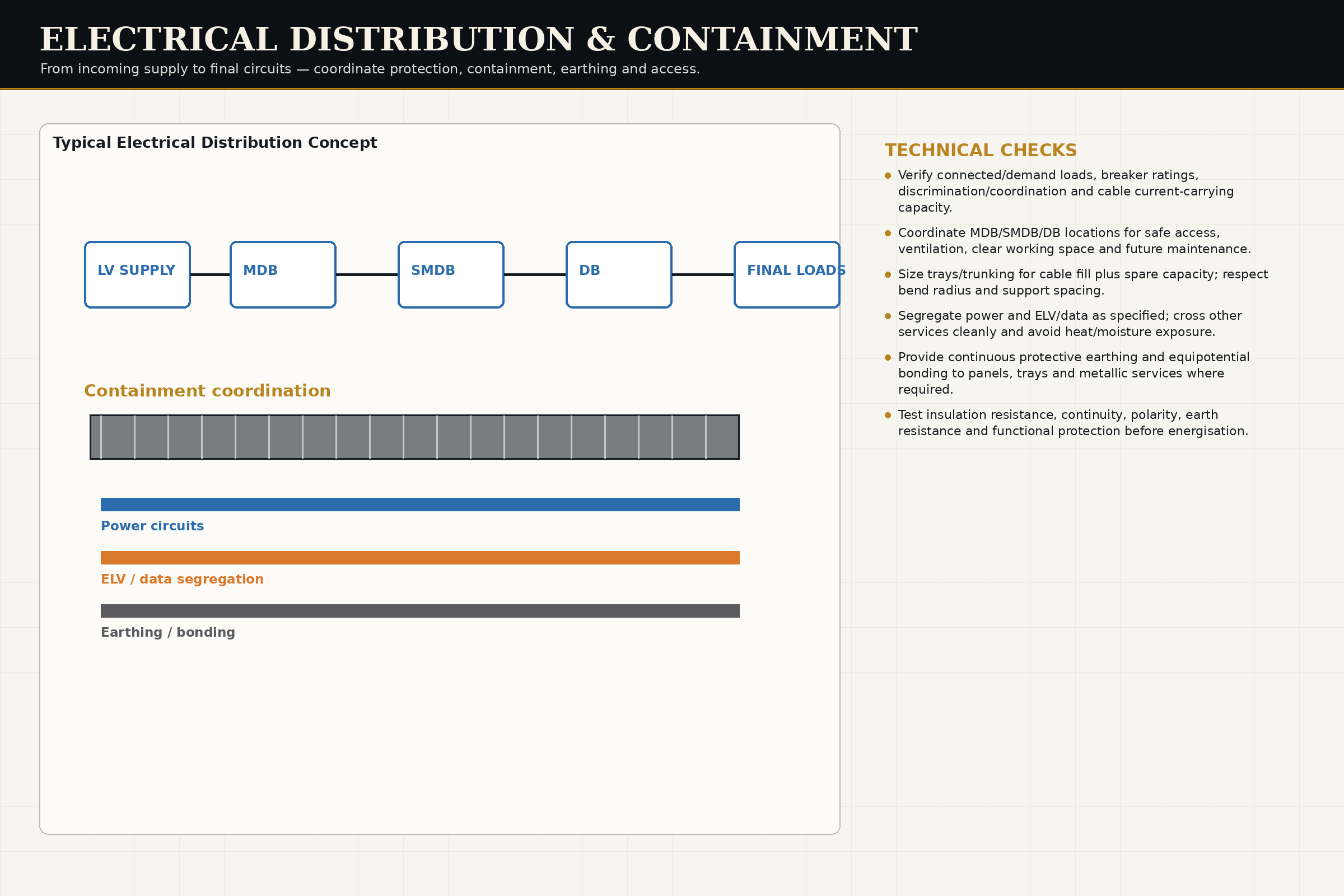

01Electrical Distribution Containment02Water Supply Pumps Tanks03Drainage Soil Waste Vent04HVAC Air Distribution05Fire Protection Alarm Interface06ELV BMS ICT07Ceiling Services Coordination08Plant Rooms Equipment Access09Shafts Risers10Supports Vibration Isolation11Insulation Firestopping Sealing
TECHNICAL CHAPTER 01
Electrical Distribution Containment
Electrical Distribution Containment: Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Design intent
Define the performance and construction intent for electrical distribution containment before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Inspection / QA
Routes, levels and clearances match coordinated drawings
Failure to avoid
Routing services before checking ceiling and structural constraints
Maintenance / long-term performance
Follow planned preventive maintenance based on equipment criticality and manufacturer intervals
TECHNICAL CHAPTER 02

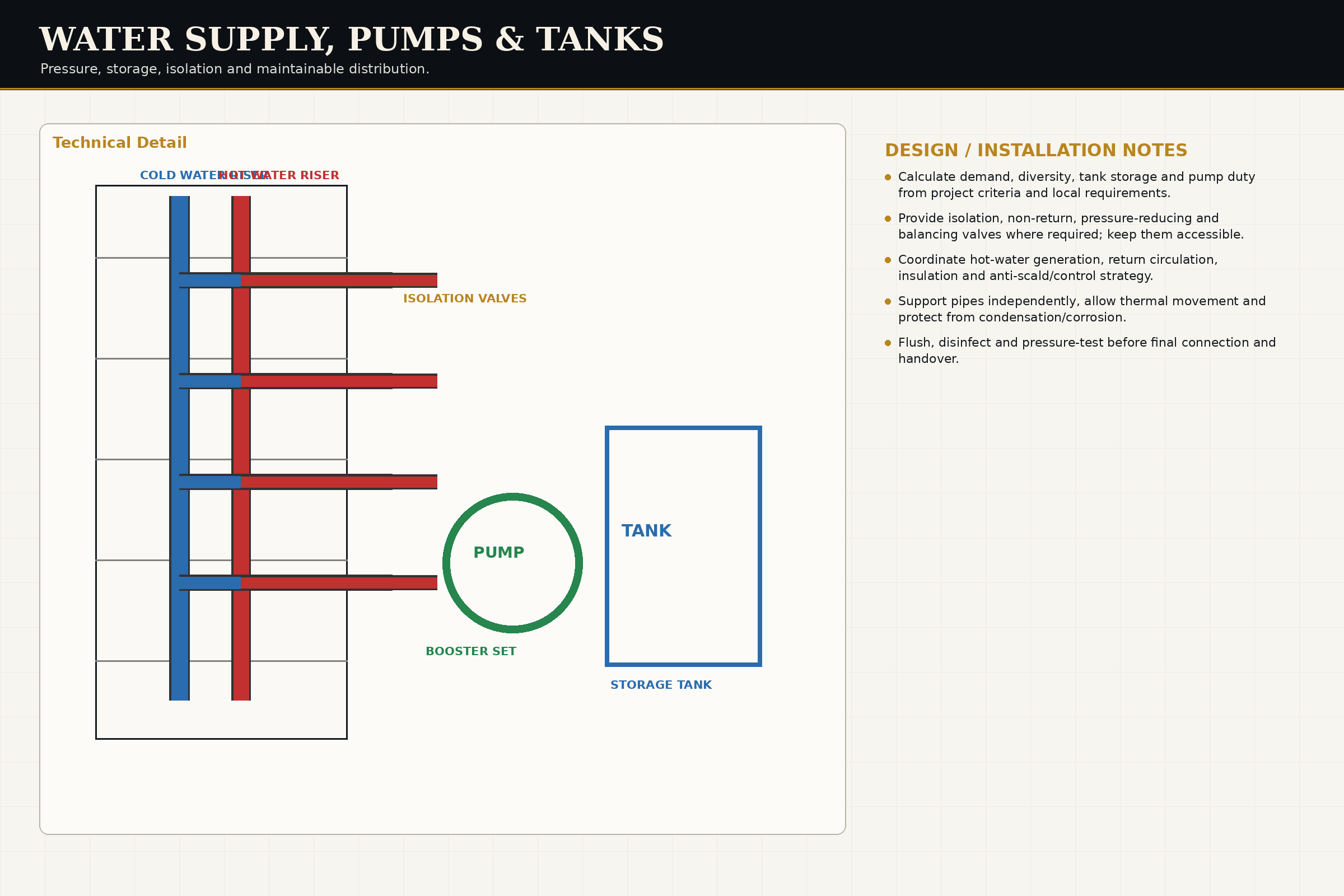

Water Supply Pumps Tanks
Water Supply Pumps Tanks: Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Design intent
Define the performance and construction intent for water supply pumps tanks before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Inspection / QA
Supports and anchors are approved and properly spaced
Failure to avoid
Hiding valves, dampers or cleanouts behind permanent finishes
Maintenance / long-term performance
Clean / replace filters and inspect condensate drainage routinely
TECHNICAL CHAPTER 03

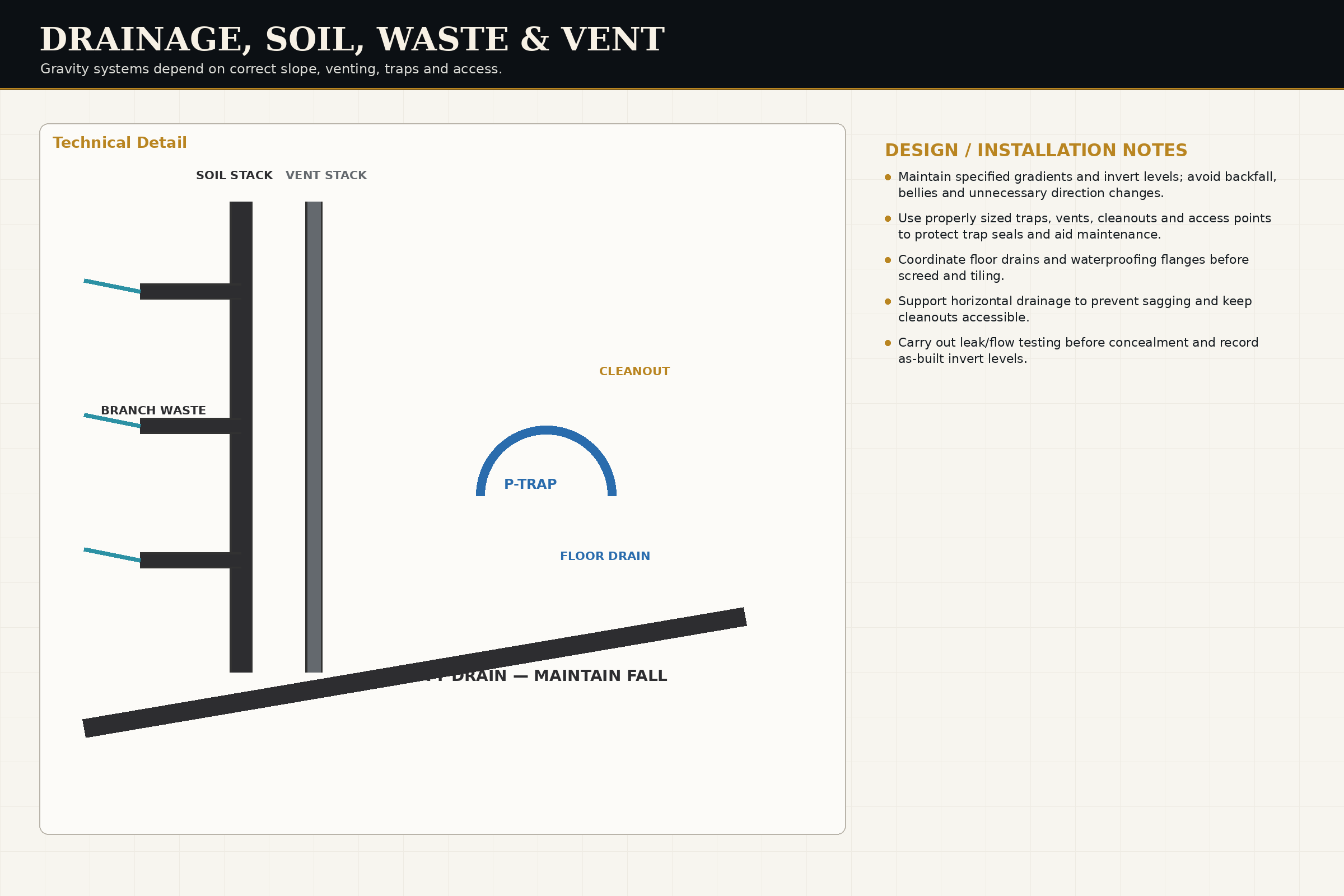

Drainage Soil Waste Vent
Drainage Soil Waste Vent: Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Design intent
Define the performance and construction intent for drainage soil waste vent before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Inspection / QA
Penetrations through rated assemblies are correctly firestopped
Failure to avoid
Using architectural ceiling wires or frames to support MEP services
Maintenance / long-term performance
Exercise valves and verify isolation points remain accessible and labelled
TECHNICAL CHAPTER 04

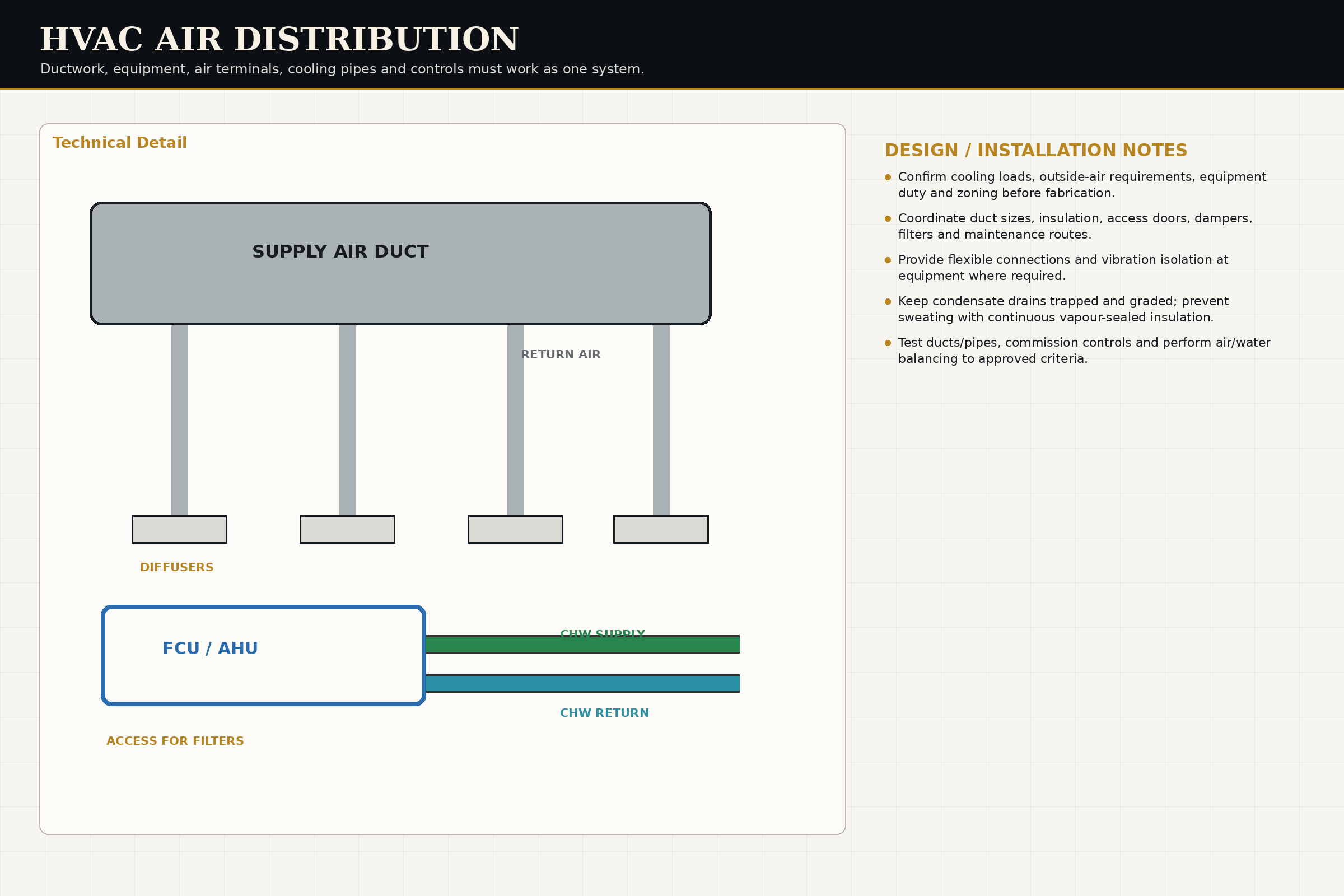

HVAC Air Distribution
HVAC Air Distribution: Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Design intent
Define the performance and construction intent for hvac air distribution before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Inspection / QA
Testing is complete before concealment and certificates are filed
Failure to avoid
Poorly sealed insulation causing condensation and ceiling damage
Maintenance / long-term performance
Thermally scan / inspect electrical terminations where appropriate for critical loads
TECHNICAL CHAPTER 05

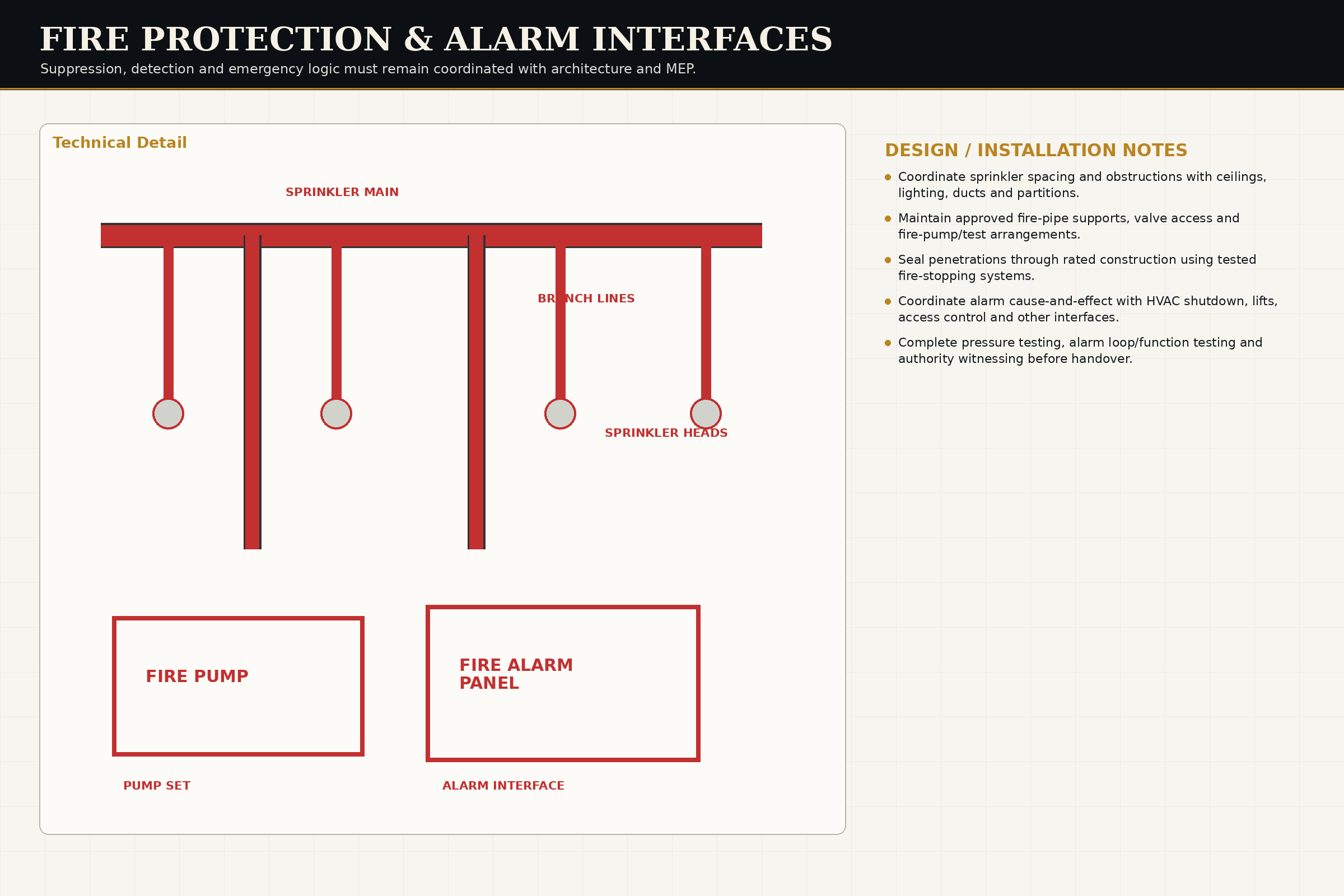

Fire Protection Alarm Interface
Fire Protection Alarm Interface: Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Design intent
Define the performance and construction intent for fire protection alarm interface before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Inspection / QA
Equipment, valves, panels and isolators are accessible and labelled
Failure to avoid
Closing penetrations with non-approved materials in rated assemblies
Maintenance / long-term performance
Keep commissioning setpoints and balancing values as baseline records
TECHNICAL CHAPTER 06

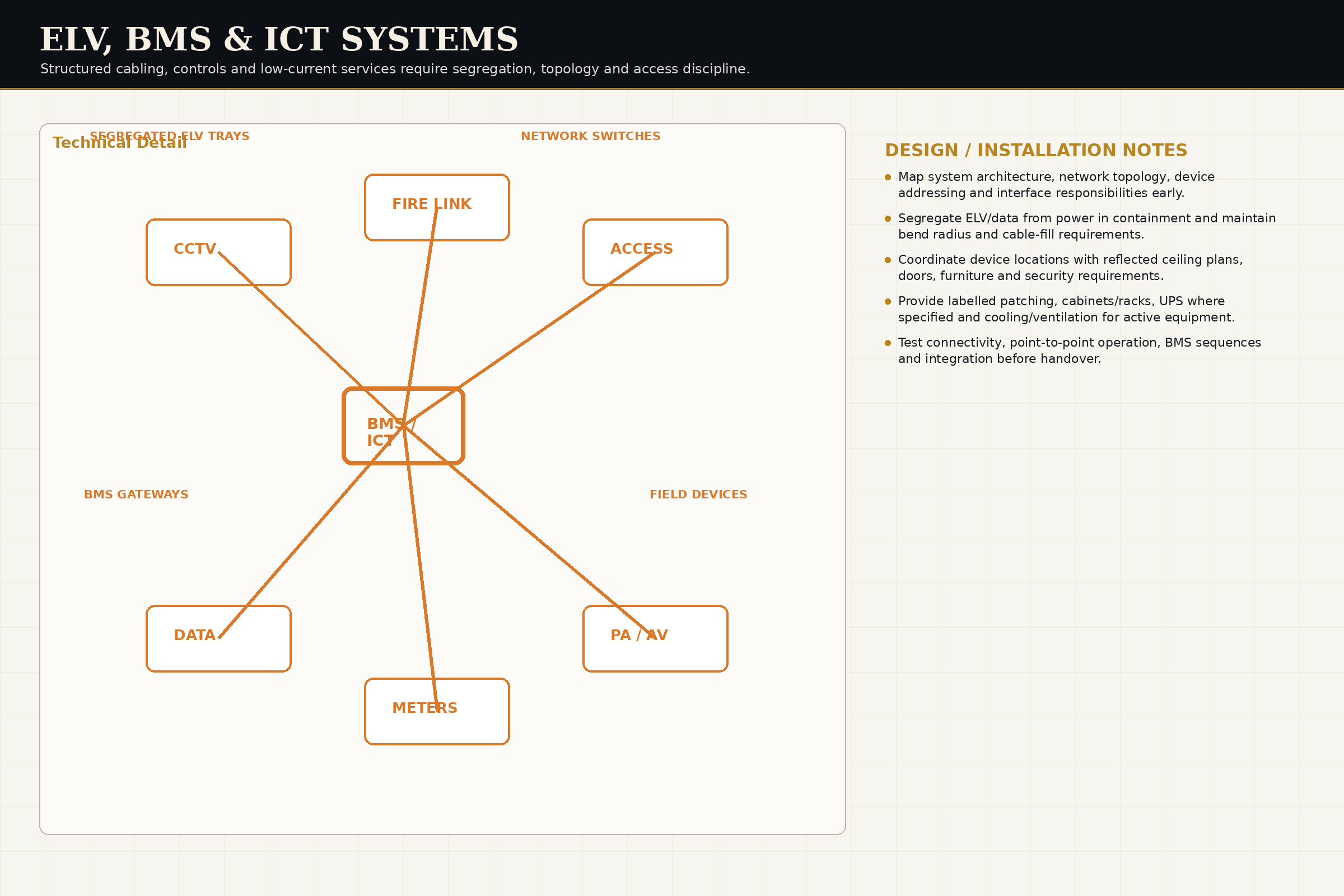

ELV BMS ICT
ELV BMS ICT: Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Design intent
Define the performance and construction intent for elv bms ict before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Inspection / QA
Commissioning results match design intent and operating requirements
Failure to avoid
Treating testing and commissioning as a paperwork exercise after practical completion
Maintenance / long-term performance
Update as-built drawings when future modifications change routes or equipment
TECHNICAL CHAPTER 07

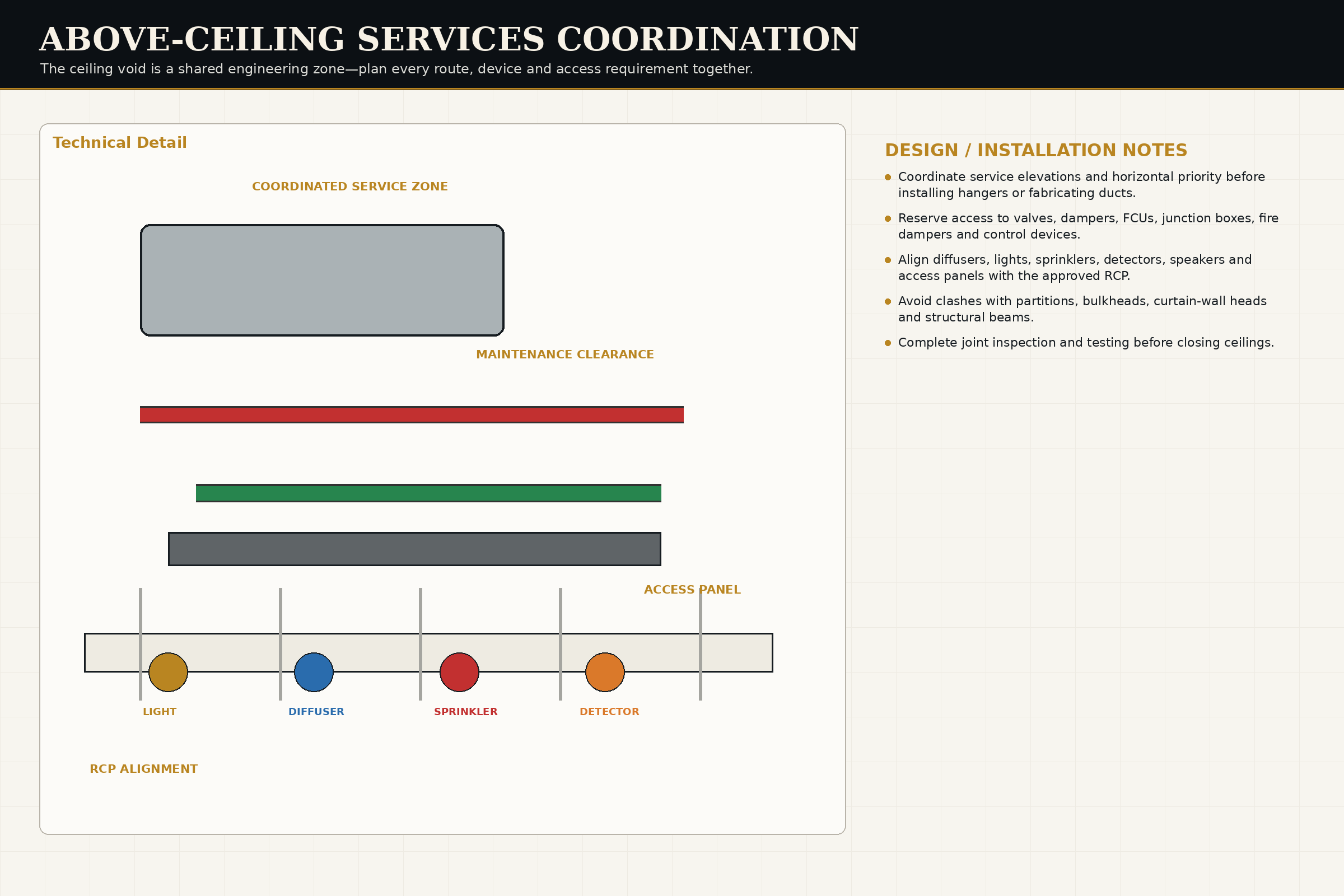

Ceiling Services Coordination
Ceiling Services Coordination: Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Design intent
Define the performance and construction intent for ceiling services coordination before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Inspection / QA
Routes, levels and clearances match coordinated drawings
Failure to avoid
Routing services before checking ceiling and structural constraints
Maintenance / long-term performance
Follow planned preventive maintenance based on equipment criticality and manufacturer intervals
TECHNICAL CHAPTER 08

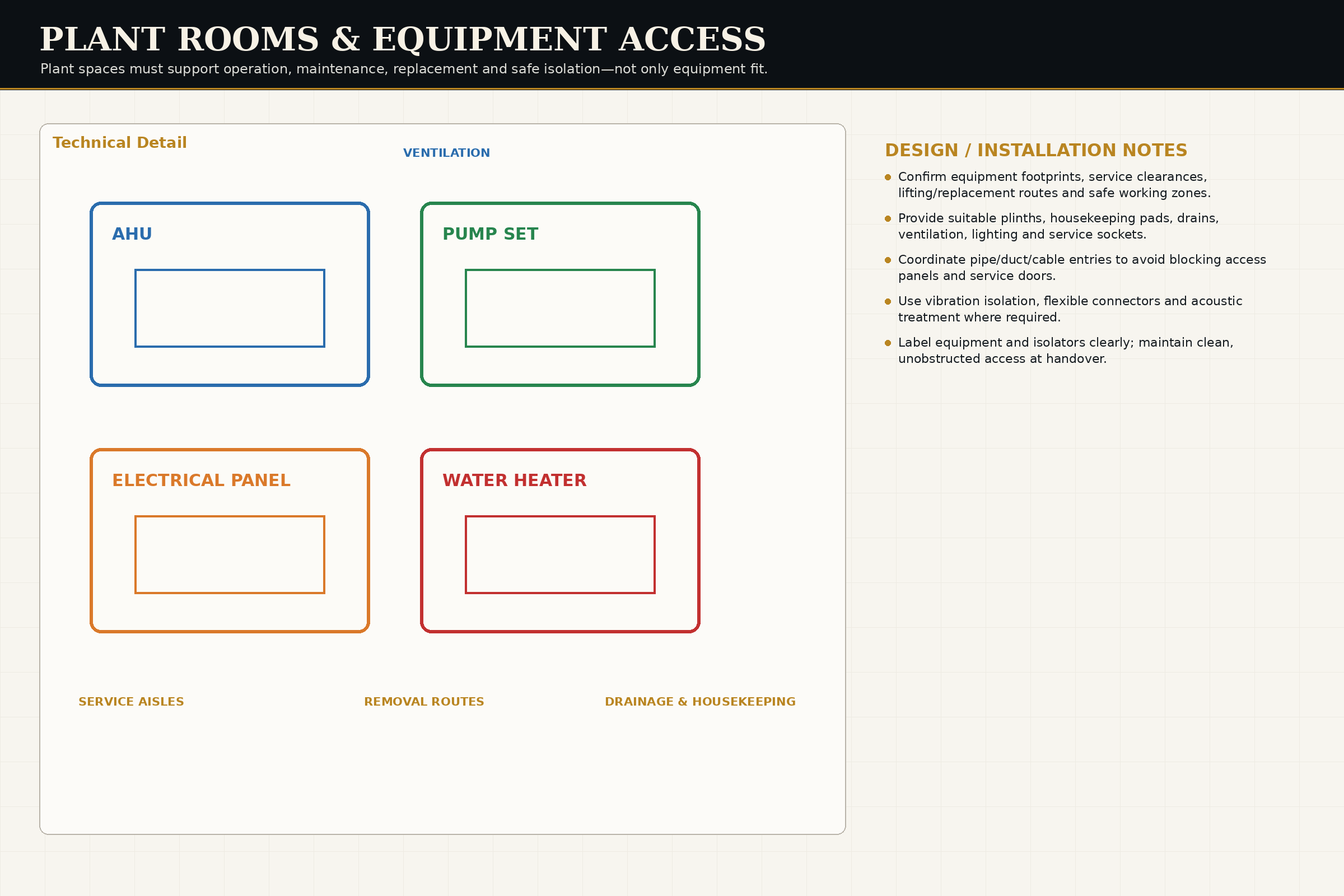

Plant Rooms Equipment Access
Plant Rooms Equipment Access: Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Design intent
Define the performance and construction intent for plant rooms equipment access before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Inspection / QA
Supports and anchors are approved and properly spaced
Failure to avoid
Hiding valves, dampers or cleanouts behind permanent finishes
Maintenance / long-term performance
Clean / replace filters and inspect condensate drainage routinely
TECHNICAL CHAPTER 09

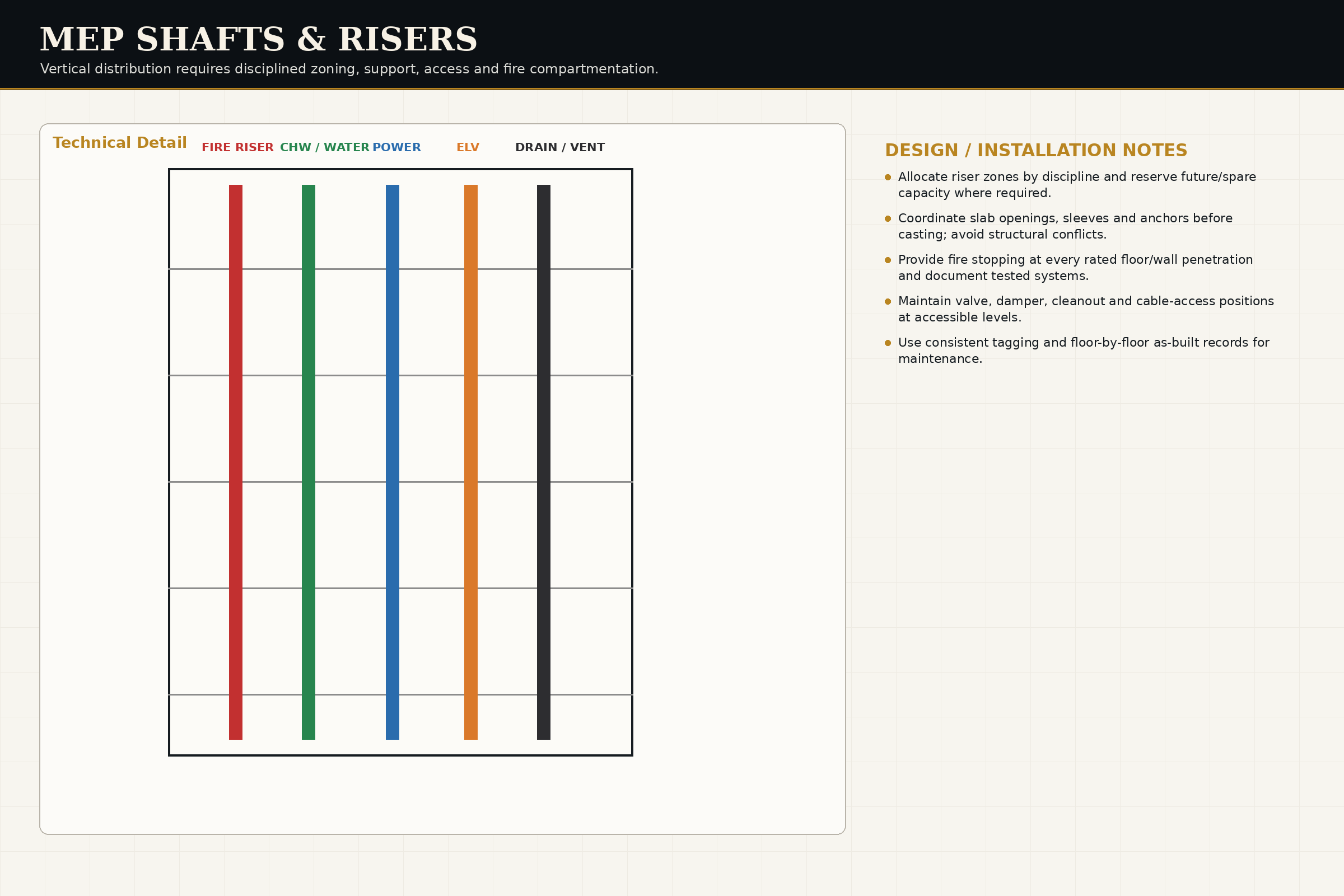

Shafts Risers
Shafts Risers: Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Design intent
Define the performance and construction intent for shafts risers before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Inspection / QA
Penetrations through rated assemblies are correctly firestopped
Failure to avoid
Using architectural ceiling wires or frames to support MEP services
Maintenance / long-term performance
Exercise valves and verify isolation points remain accessible and labelled
TECHNICAL CHAPTER 10

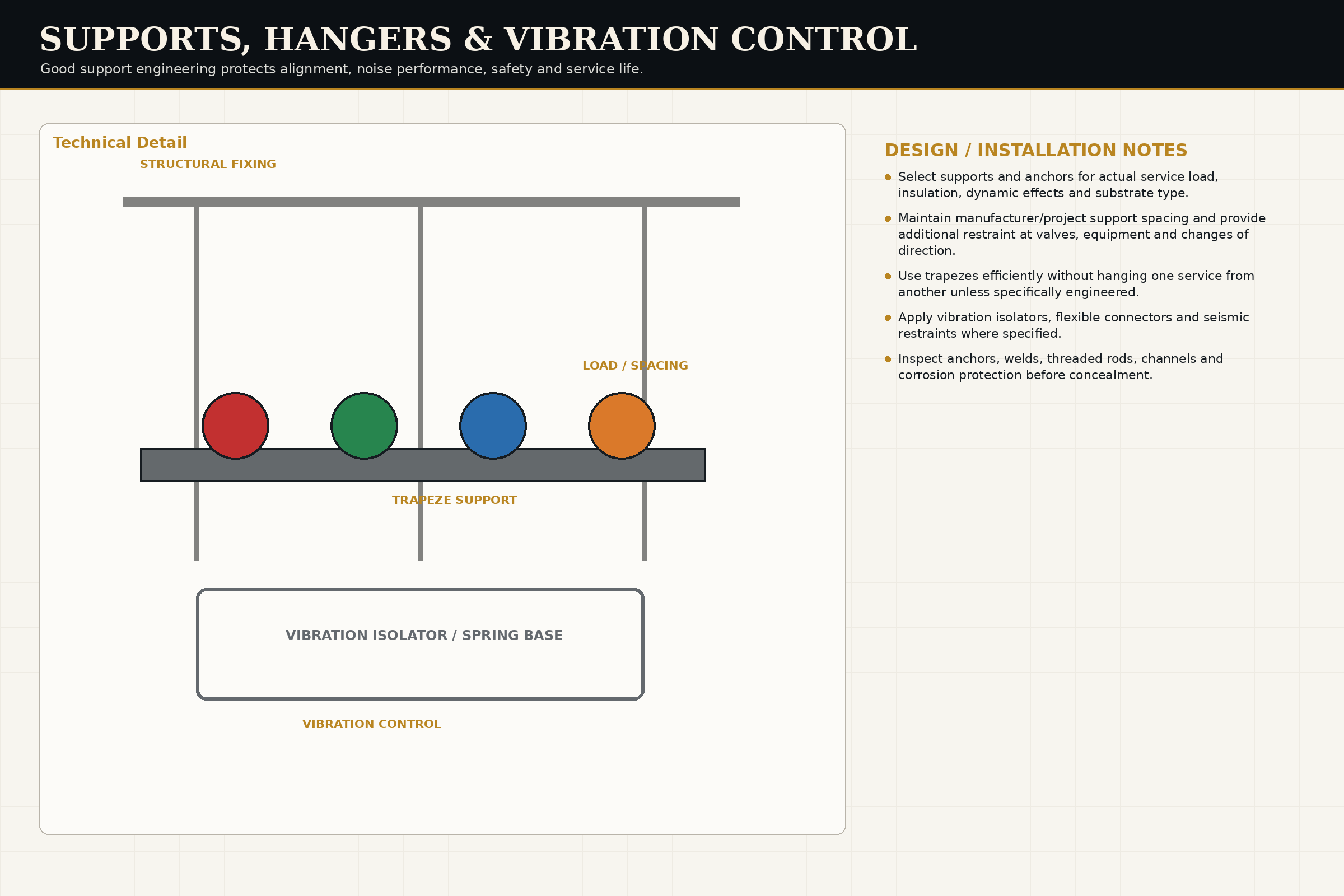

Supports Vibration Isolation
Supports Vibration Isolation: Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Design intent
Define the performance and construction intent for supports vibration isolation before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Inspection / QA
Testing is complete before concealment and certificates are filed
Failure to avoid
Poorly sealed insulation causing condensation and ceiling damage
Maintenance / long-term performance
Thermally scan / inspect electrical terminations where appropriate for critical loads
TECHNICAL CHAPTER 11

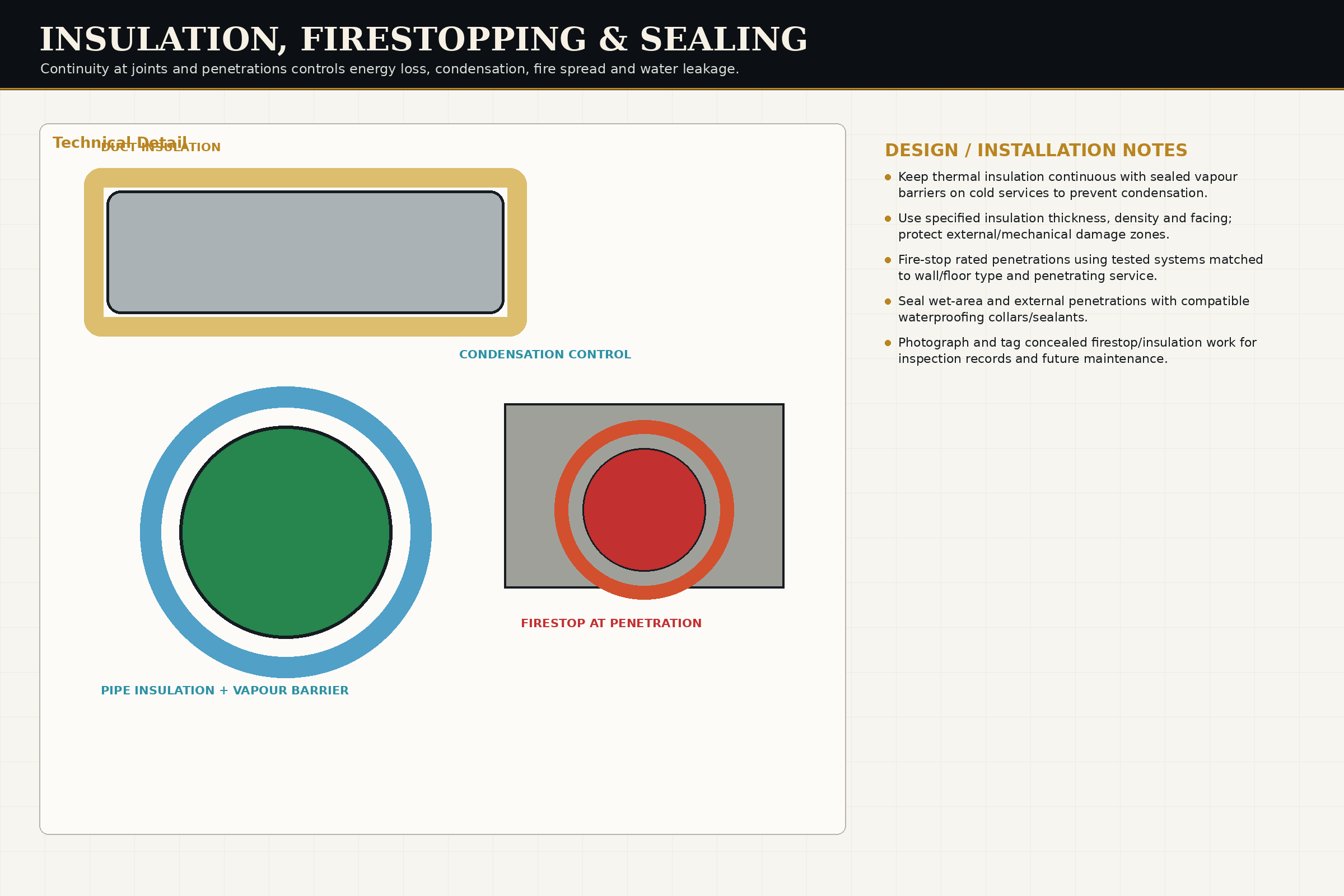

Insulation Firestopping Sealing
Insulation Firestopping Sealing: Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Design intent
Define the performance and construction intent for insulation firestopping sealing before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate system duty, loads/flows, containment and routes, supports, access, insulation, controls, testing, balancing, commissioning and maintainability across all MEP disciplines.
Inspection / QA
Equipment, valves, panels and isolators are accessible and labelled
Failure to avoid
Closing penetrations with non-approved materials in rated assemblies
Maintenance / long-term performance
Keep commissioning setpoints and balancing values as baseline records
05 · QA/QC
Inspect before concealment and before handover.
01Routes, levels and clearances match coordinated drawings
02Supports and anchors are approved and properly spaced
03Penetrations through rated assemblies are correctly firestopped
04Testing is complete before concealment and certificates are filed
05Equipment, valves, panels and isolators are accessible and labelled
06Commissioning results match design intent and operating requirements
06 · COMMON FAILURES
Recognise the failure mechanism—not only the visible defect.
Failures to avoid
×Routing services before checking ceiling and structural constraints
×Hiding valves, dampers or cleanouts behind permanent finishes
×Using architectural ceiling wires or frames to support MEP services
×Poorly sealed insulation causing condensation and ceiling damage
×Closing penetrations with non-approved materials in rated assemblies
×Treating testing and commissioning as a paperwork exercise after practical completion
07 · MAINTENANCE & AFTERCARE
Design for access, repair and long-term performance.
Maintenance controls
✓Follow planned preventive maintenance based on equipment criticality and manufacturer intervals
✓Clean / replace filters and inspect condensate drainage routinely
✓Exercise valves and verify isolation points remain accessible and labelled
✓Thermally scan / inspect electrical terminations where appropriate for critical loads
✓Keep commissioning setpoints and balancing values as baseline records
✓Update as-built drawings when future modifications change routes or equipment
08 · STANDARDS & MANUFACTURER REFERENCES
Use the latest approved project documents and tested systems.
• Current local authority and utility regulations applicable to the project and emirate
• IEC 60364 / BS 7671 principles for electrical installations where referenced
• ASHRAE design guidance and SMACNA duct-construction practices where specified
• Relevant NFPA / UAE Fire and Life Safety requirements for fire-related systems
• BS EN 12056 / approved local drainage requirements where referenced
• Approved project specifications, equipment schedules, manufacturer instructions and commissioning procedures
Technical guidance is educational and indicative. Final design, dimensions, materials, installation details and acceptance criteria must follow the approved project documents, manufacturer instructions and the latest requirements of the relevant UAE authority, landlord, consultant and specialist engineer.
09 · COMPLETE IMAGE LIBRARY
24 high-resolution visuals assigned to this activity.
Each file remains separate and is mapped directly to its relevant section. Click any image to inspect it at full resolution.
HeroOverviewFundamentalsQA/QCFailuresMaintenanceStandards & Brands Stage 01 · Design ReviewStage 02 · Coordinated Shop DrawingsStage 03 · Sleeves Builders Work First FixStage 04 · Service InstallationStage 05 · Testing CommissioningStage 06 · Final Balancing Handover 01 · Electrical Distribution Containment02 · Water Supply Pumps Tanks03 · Drainage Soil Waste Vent04 · HVAC Air Distribution05 · Fire Protection Alarm Interface06 · ELV BMS ICT07 · Ceiling Services Coordination08 · Plant Rooms Equipment Access09 · Shafts Risers10 · Supports Vibration Isolation11 · Insulation Firestopping Sealing
