Joinery & Woodworks
Joinery combines hygroscopic natural materials, engineered boards, precision machining, hardware mechanics, adhesives and coatings. Dimensional control must account for moisture movement, hardware geometry, tolerances and the difference between site dimensions and factory coordinates.
GUIDE MAP
Read the discipline visually, then go into the engineering detail.
Every image below is activity-specific. No repeated generic placeholder sheets are used in this guide.
01
System Overview
Architectural joinery uses timber, plywood, MDF, particleboard, veneers, laminates, solid surface and hardware to manufacture fixed and loose interior elements. Factory control is important because moisture, machining accuracy, edging, adhesive application, sanding and finishing directly affect durability and appearance. Joinery must also coordinate with electrical points, stone, mirrors, metal trims, appliances and ventilation gaps.
Open section →
02
Engineering Fundamentals
Start from fully dimensioned shop drawings and verified site openings
Open section →
03
Execution Workflow
Capture finished dimensions, wall deviations, service points and appliance data; issue coordinated drawings
Open section →
04
Technical Chapters
37 individual sub-activity drawings with discipline-specific notes and inspection controls.
Open section →
05

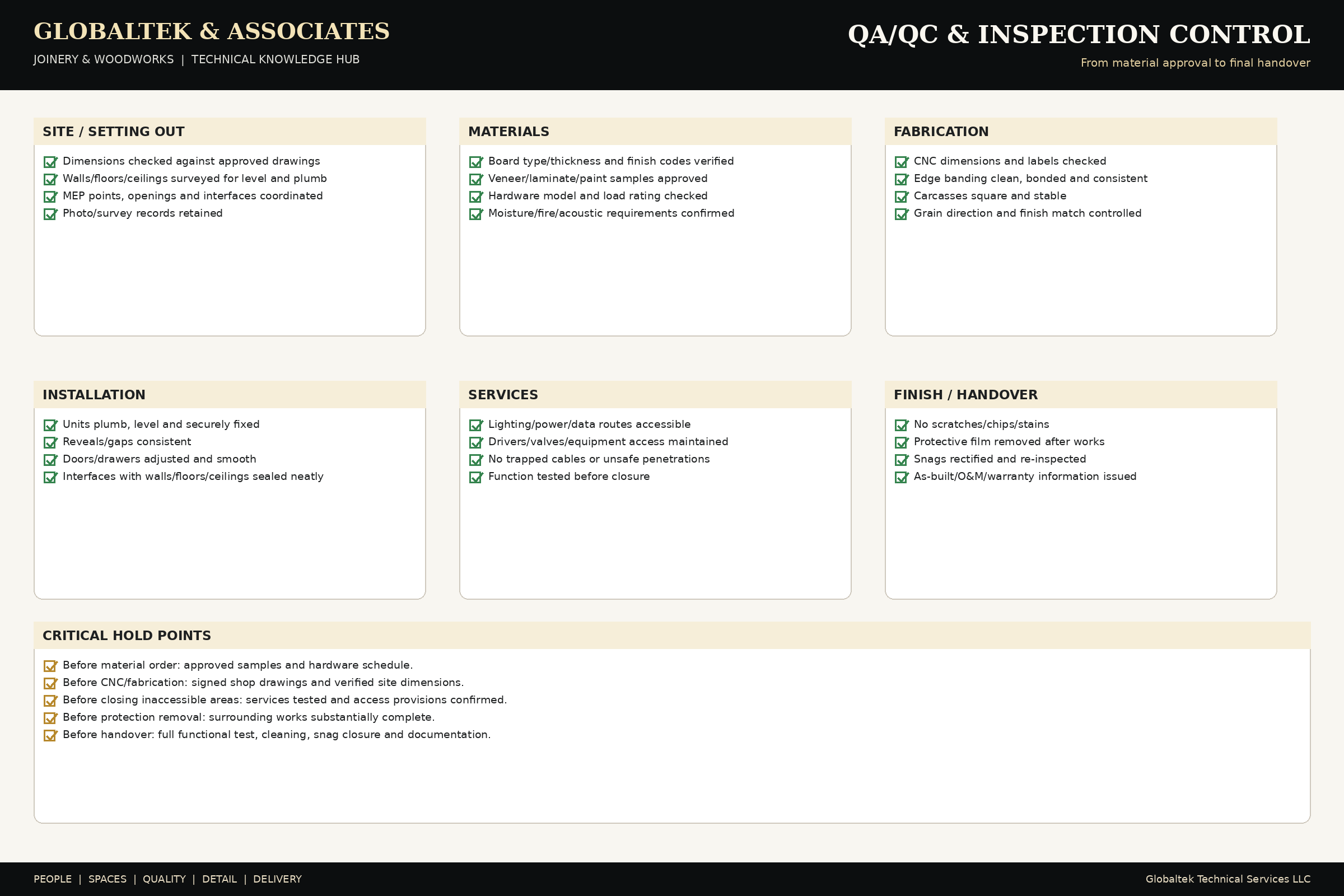

QA/QC
Shop drawings match final site dimensions and appliance / MEP data
Open section →
06

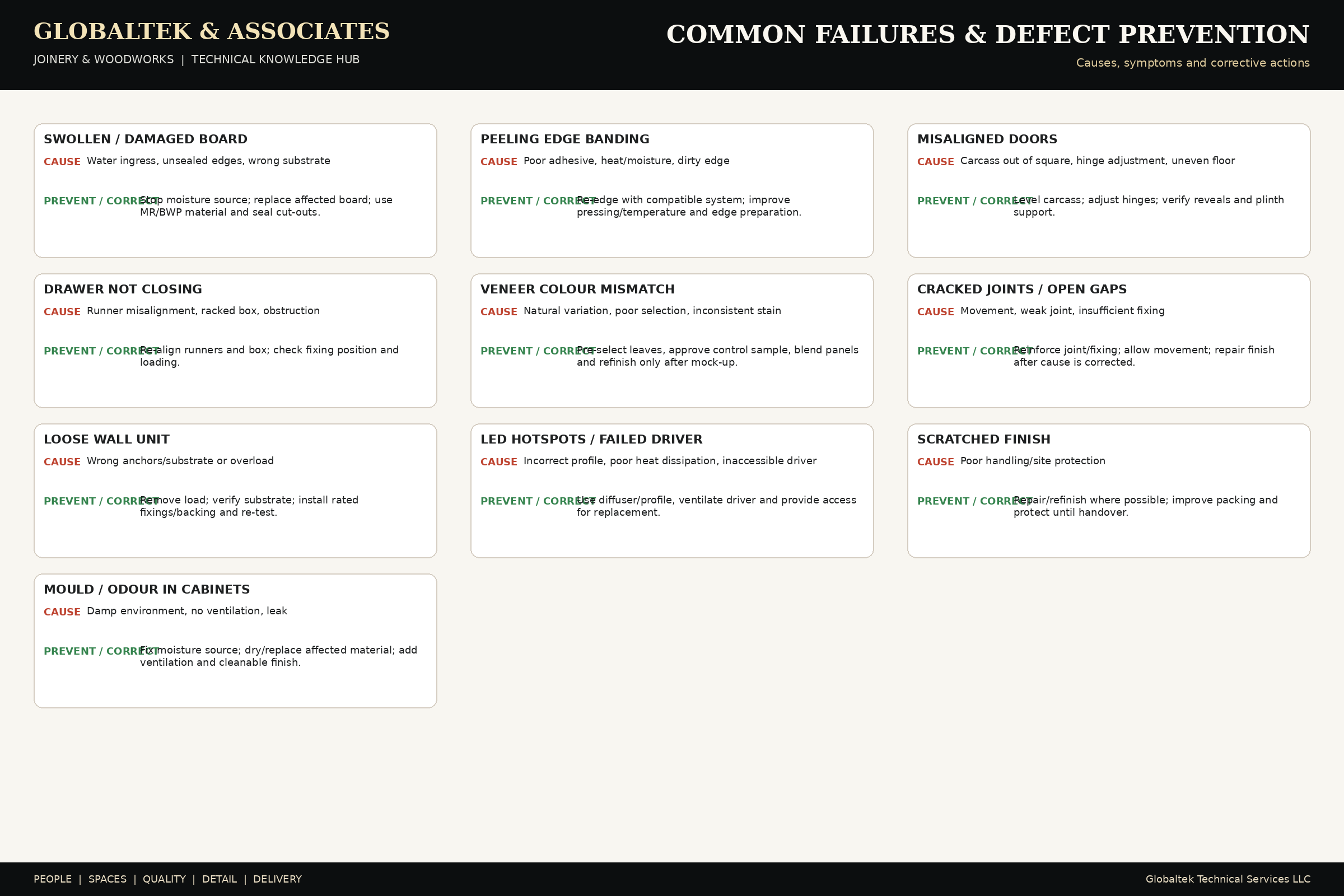

Failure Analysis
Fabricating before final site measurement
Open section →
07
Maintenance
Clean with soft cloths and neutral products; avoid standing water and solvent cleaners
Open section →
08
Standards & Brands
Project-approved fire performance requirements for substrates and finishes
Open section →01 · SYSTEM OVERVIEW
What this activity is
What this activity is
Architectural joinery uses timber, plywood, MDF, particleboard, veneers, laminates, solid surface and hardware to manufacture fixed and loose interior elements. Factory control is important because moisture, machining accuracy, edging, adhesive application, sanding and finishing directly affect durability and appearance. Joinery must also coordinate with electrical points, stone, mirrors, metal trims, appliances and ventilation gaps.
What to expect
Expect most high-quality joinery to be engineered and fabricated off-site after a precise site survey and approved shop drawings. The client should approve material samples, veneer direction, hardware, edge details, colour and sheen before production. Site installation then becomes an assembly and alignment exercise rather than improvised carpentry.
01Start from fully dimensioned shop drawings and verified site openings
02Control timber/board moisture and acclimatisation before machining
03Define veneer grain direction, matching method and panel sequence
04Translate approved drawings into cutting lists/CNC data without losing tolerances
05Choose hardware by door/drawer mass, geometry and cycle duty
06Finish and protect components before delivery where the specification permits
02 · ENGINEERING FUNDAMENTALS
Understand why the system behaves the way it does.
01
Moisture movement is anisotropic: tangential movement is normally greater than radial movement; solid timber details must allow movement across grain
02
Tolerance stack = Σ component tolerances along the functional chain; critical clearances should be allocated, not left to chance
03
Panel yield (%) = net component area / gross board area × 100; add kerf, grain direction, edge defects and pattern matching before ordering
Engineered panels are dimensionally more stable than solid timber but their cut edges and fixing zones remain critical. MDF/particleboard exposed to water at unsealed edges can swell irreversibly; wet-zone details should use appropriate substrates and sealed edges.
Veneer selection is visual engineering. Book match, slip match, reverse slip, crown/quarter grain, flitch sequence and panel orientation must be agreed before pressing because the pattern cannot be corrected after the veneer is bonded and finished.
CNC accuracy does not compensate for wrong data. Site verification, datum control, tool diameter compensation, panel thickness, drill depths and hardware boring patterns must all agree with the approved model/drawing.
Finishing is a system: substrate sanding, stain, sealer, intermediate sanding, topcoat chemistry, film build and curing conditions affect colour, adhesion, gloss and repairability. Always follow the selected coating manufacturer’s system.
03 · EXECUTION WORKFLOW
Six progressive stages from preparation to verified handover.
Open any plate to read the full-resolution technical notes.
01Measurements Site Survey
02Shop Drawings Detailing
03Material Hardware Approval
04CNC Machining
05Assembly Finishing
06Installation Handover
STAGE 01
Measurements Site Survey
Capture finished dimensions, wall deviations, service points and appliance data; issue coordinated drawings
Engineering intent
Condition timber and boards for the intended interior environment before fabrication
Inspection / hold point
Shop drawings match final site dimensions and appliance / MEP data
Best practice
Prototype critical details before mass production
Failure to avoid
Fabricating before final site measurement
Handover / maintenance
Clean with soft cloths and neutral products; avoid standing water and solvent cleaners
STAGE 02

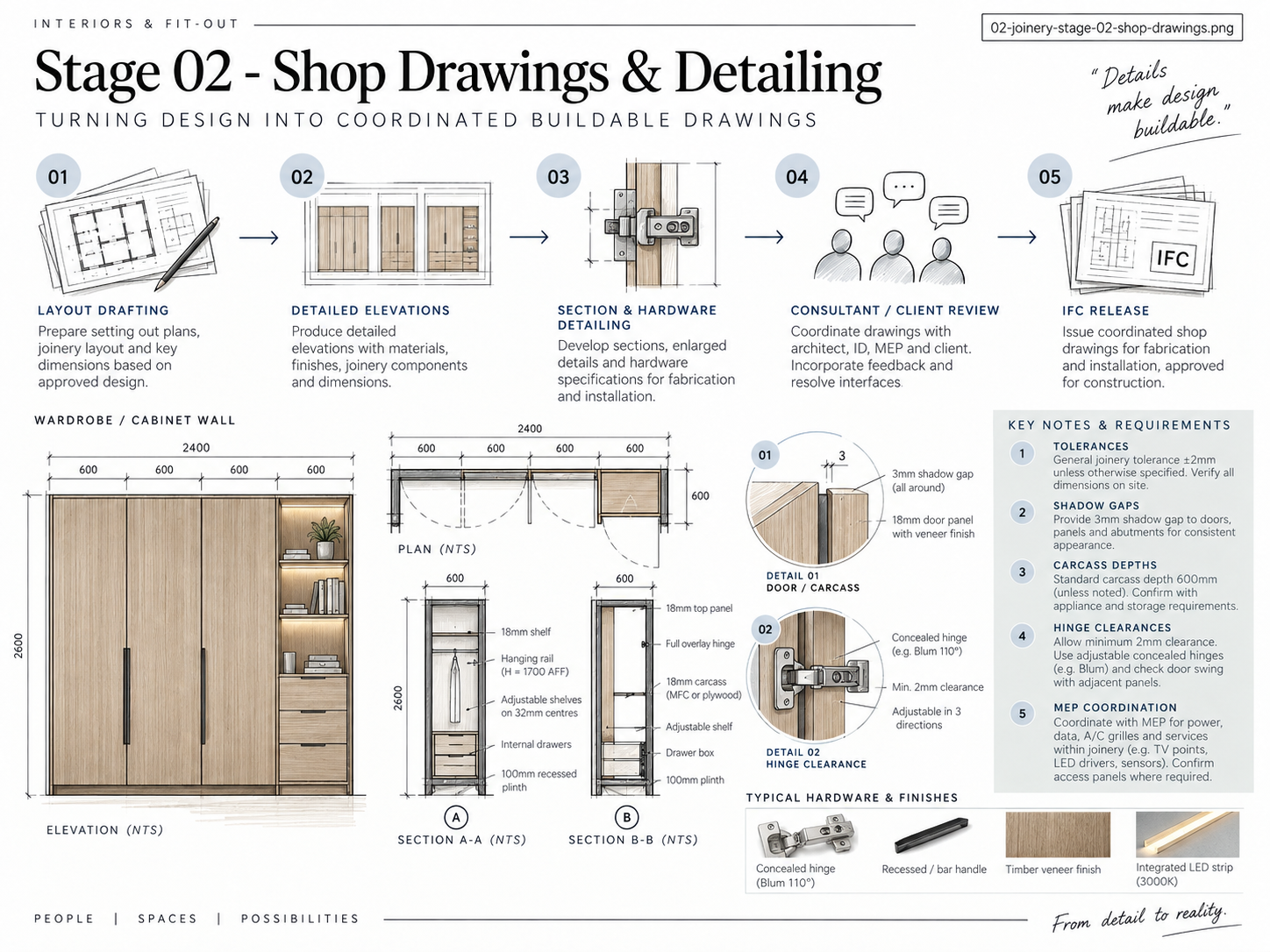

Shop Drawings Detailing
Approve board type, veneer / laminate, colour, hardware, edge detail and finishing sample
Engineering intent
Select based on span, fixing, hardware loads and edge detail; do not rely on appearance alone
Inspection / hold point
Board, veneer, laminate and hardware match approved samples
Best practice
Use moisture barriers and ventilation where cabinetry encloses appliances or plumbing
Failure to avoid
Using low-grade substrate in humid or heavy-use areas
Handover / maintenance
Adjust hinges and runners when doors begin to sag rather than forcing them
STAGE 03

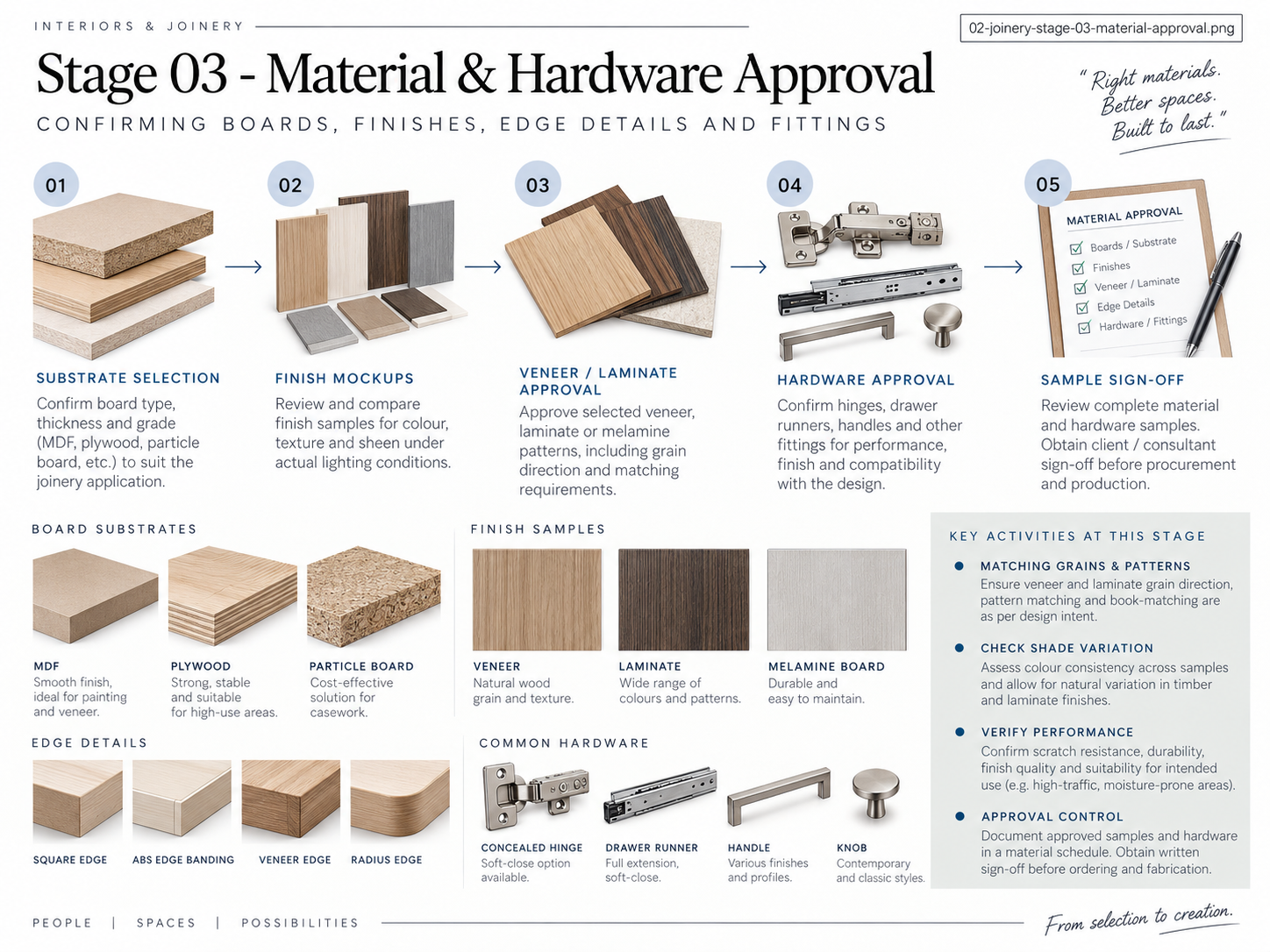

Material Hardware Approval
Panel saw / CNC cutting, drilling, routing, edge preparation and dry assembly
Engineering intent
Use suitable ABS, veneer, solid lipping or painted edge treatment for durability and design intent
Inspection / hold point
Cabinets are square, level, securely anchored and have consistent reveals
Best practice
Sequence veneer sheets and record panel locations before pressing
Failure to avoid
Ignoring edge sealing around sinks and sanitary zones
Handover / maintenance
Repair damaged edge sealing quickly in kitchens, vanities and wet zones
STAGE 04

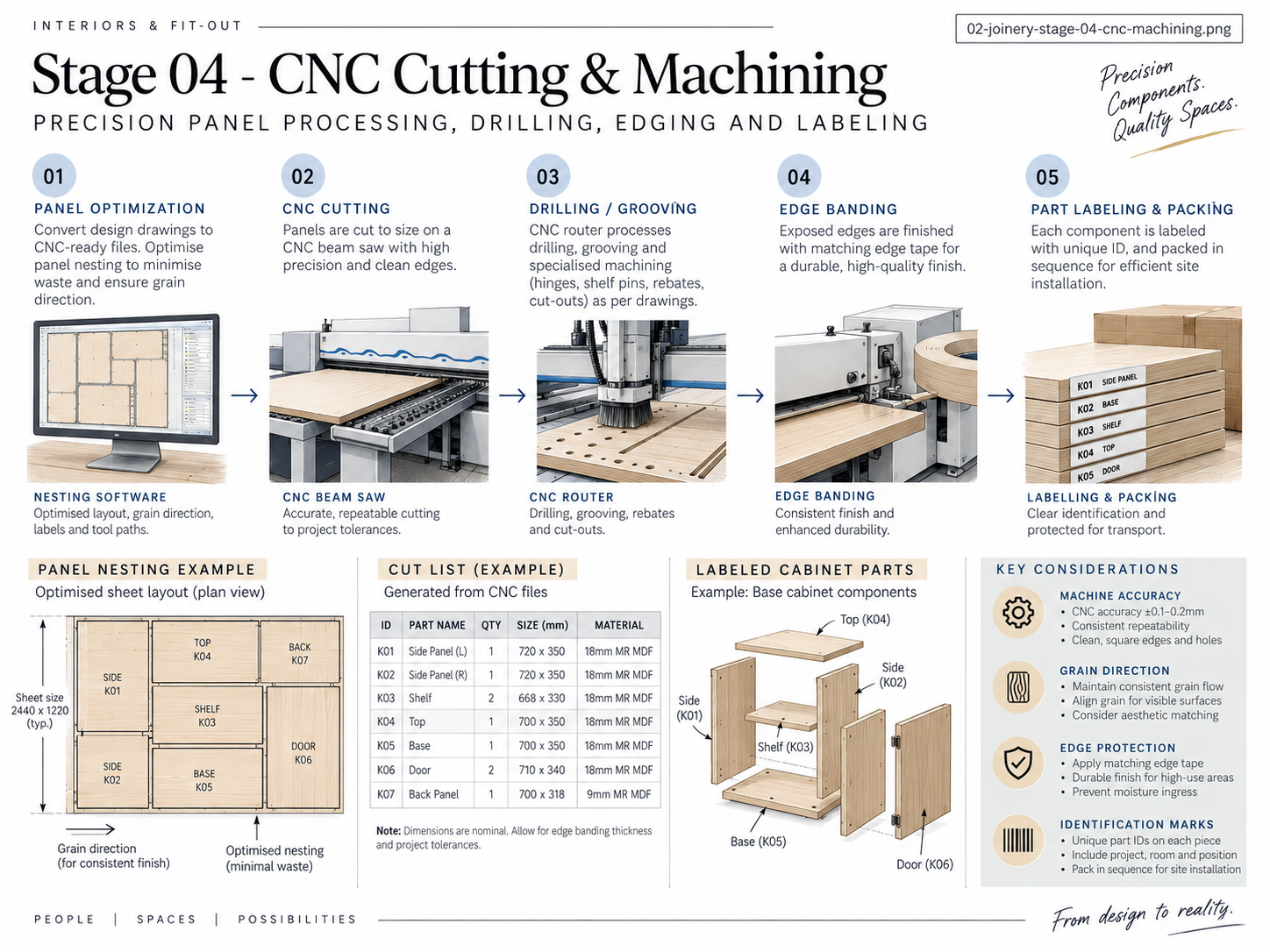

CNC Machining
Glue, clamp, edge-band, veneer and apply coatings under controlled factory conditions
Engineering intent
Define book-match, slip-match, grain direction and panel sequencing in approved samples
Inspection / hold point
Veneer grain / colour sequencing is coherent across adjacent panels
Best practice
Use adjustable hardware and concealed fixing where future realignment may be required
Failure to avoid
Mixing veneer sheets without sequencing grain and tone
Handover / maintenance
Maintain indoor humidity within a stable range to reduce movement and warping
STAGE 05
Assembly Finishing
Protect finished pieces, set level datums, anchor safely and connect interfaces with stone, glass, metal and MEP
Engineering intent
Hinges and runners must suit door/drawer weight, frequency of use and opening geometry
Inspection / hold point
Edges and exposed substrate are fully sealed where required
Best practice
Protect finished joinery with breathable materials during remaining construction
Failure to avoid
Overloading shelves or drawers beyond hardware capacity
Handover / maintenance
Use cutting boards / heat protection on decorative worktops and surfaces

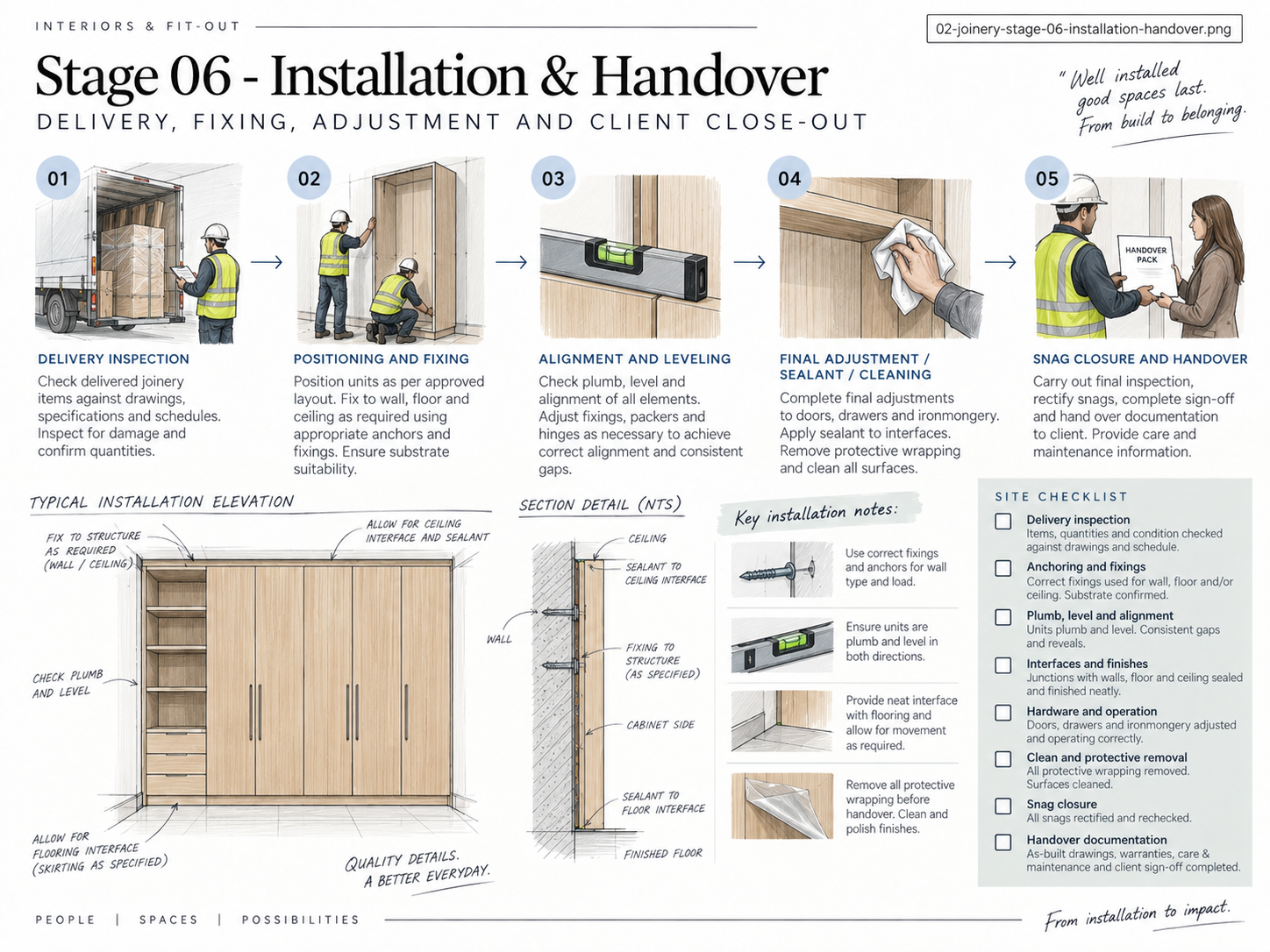

STAGE 06
Installation Handover
Adjust doors/drawers, align reveals, touch up minor damage and provide care instructions / hardware warranties
Engineering intent
Use moisture-resistant substrate, sealed edges and appropriate ventilation near sinks / wet zones
Inspection / hold point
Doors, drawers, locks, lighting and accessories operate smoothly at handover
Best practice
Coordinate stone, glass, appliances, LED profiles and socket cut-outs before factory machining
Failure to avoid
Installing cabinetry before wet trades are dry and the environment is conditioned
Handover / maintenance
Retain spare laminate, veneer reference, paint code and hardware model for future repairs
04 · TECHNICAL CHAPTERS
37 detailed sub-activities for Joinery & Woodworks.
The file naming and page mapping are one-to-one: each technical subject has its own individual high-resolution image.
01Wardrobes02Kitchen Cabinets03Tv Media Units04Beds Headboards05Sofas Upholstered Seating06Dining Tables07Chairs08Bathroom Vanities09Laundry Units10Consoles11Reception Counters12Wall Claddings Panelling13Doors Frames14Shoe Racks Entry Storage15Office Desks Workstations16Shelving Bookcases17Coffee Side Tables18Dressing Tables Makeup Units19Bars Minibars20Retail Display Units21Banquette Bench Seating22Staircase Timber Works23Decorative Screens Slats24Timber Ceiling Features25Storage Utility Cabinets26Custom Loose Furniture27Pantry Tea Point28Lockers Changing Room Joinery29Hardware Ironmongery30Veneers Laminates Edge Banding31Integrated Lighting Services32Acoustic Timber Panels33Repair Refurbishment34Mirror Integrated Joinery35Hospitality Casegoods36Outdoor Exterior Joinery37Under Stair Storage
TECHNICAL CHAPTER 01
Wardrobes
Wardrobes: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for wardrobes before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Shop drawings match final site dimensions and appliance / MEP data
Failure to avoid
Fabricating before final site measurement
Maintenance / long-term performance
Clean with soft cloths and neutral products; avoid standing water and solvent cleaners
TECHNICAL CHAPTER 02

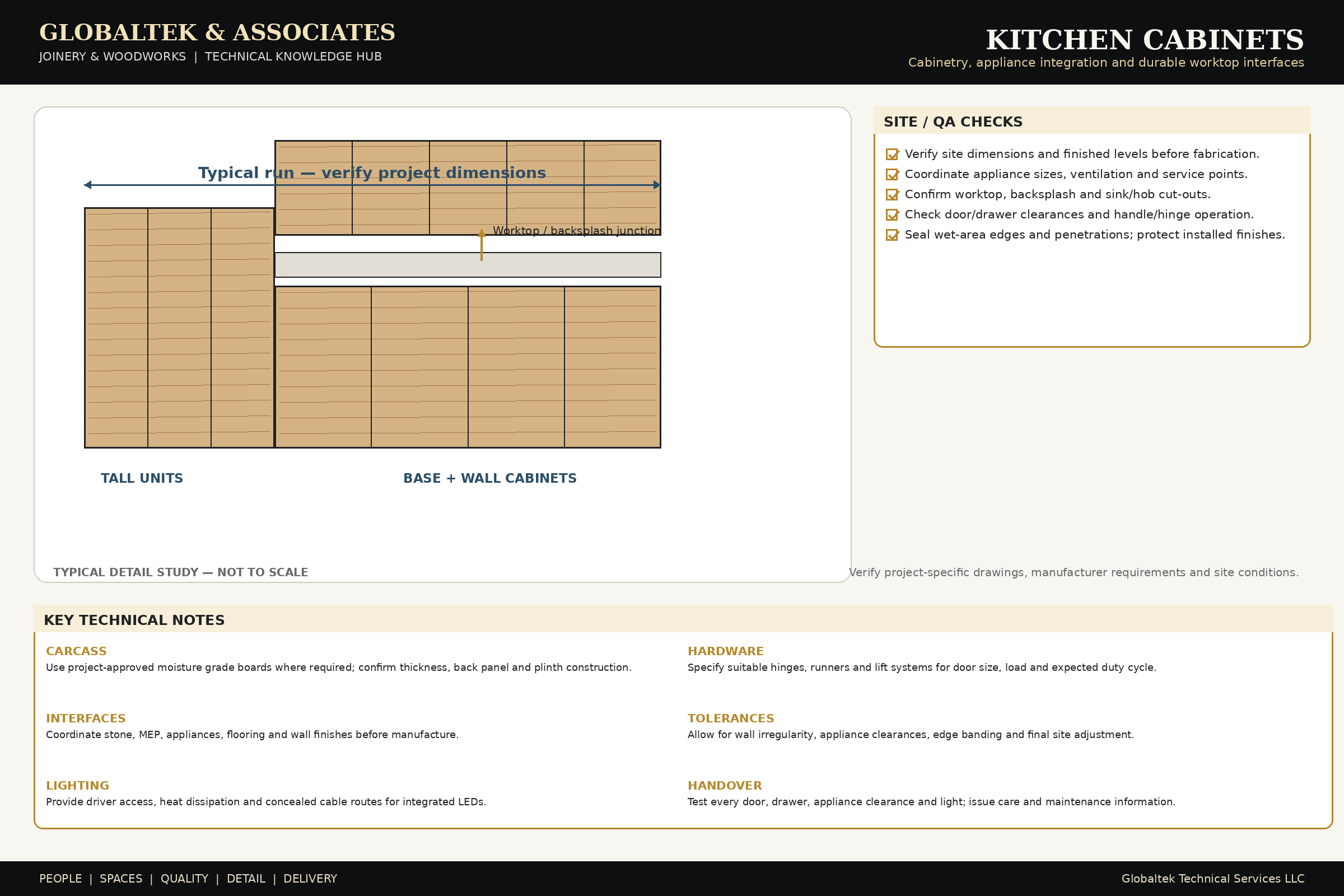

Kitchen Cabinets
Kitchen Cabinets: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for kitchen cabinets before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Board, veneer, laminate and hardware match approved samples
Failure to avoid
Using low-grade substrate in humid or heavy-use areas
Maintenance / long-term performance
Adjust hinges and runners when doors begin to sag rather than forcing them
TECHNICAL CHAPTER 03
Tv Media Units
Tv Media Units: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for tv media units before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Cabinets are square, level, securely anchored and have consistent reveals
Failure to avoid
Ignoring edge sealing around sinks and sanitary zones
Maintenance / long-term performance
Repair damaged edge sealing quickly in kitchens, vanities and wet zones
TECHNICAL CHAPTER 04
Beds Headboards
Beds Headboards: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for beds headboards before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Veneer grain / colour sequencing is coherent across adjacent panels
Failure to avoid
Mixing veneer sheets without sequencing grain and tone
Maintenance / long-term performance
Maintain indoor humidity within a stable range to reduce movement and warping
TECHNICAL CHAPTER 05

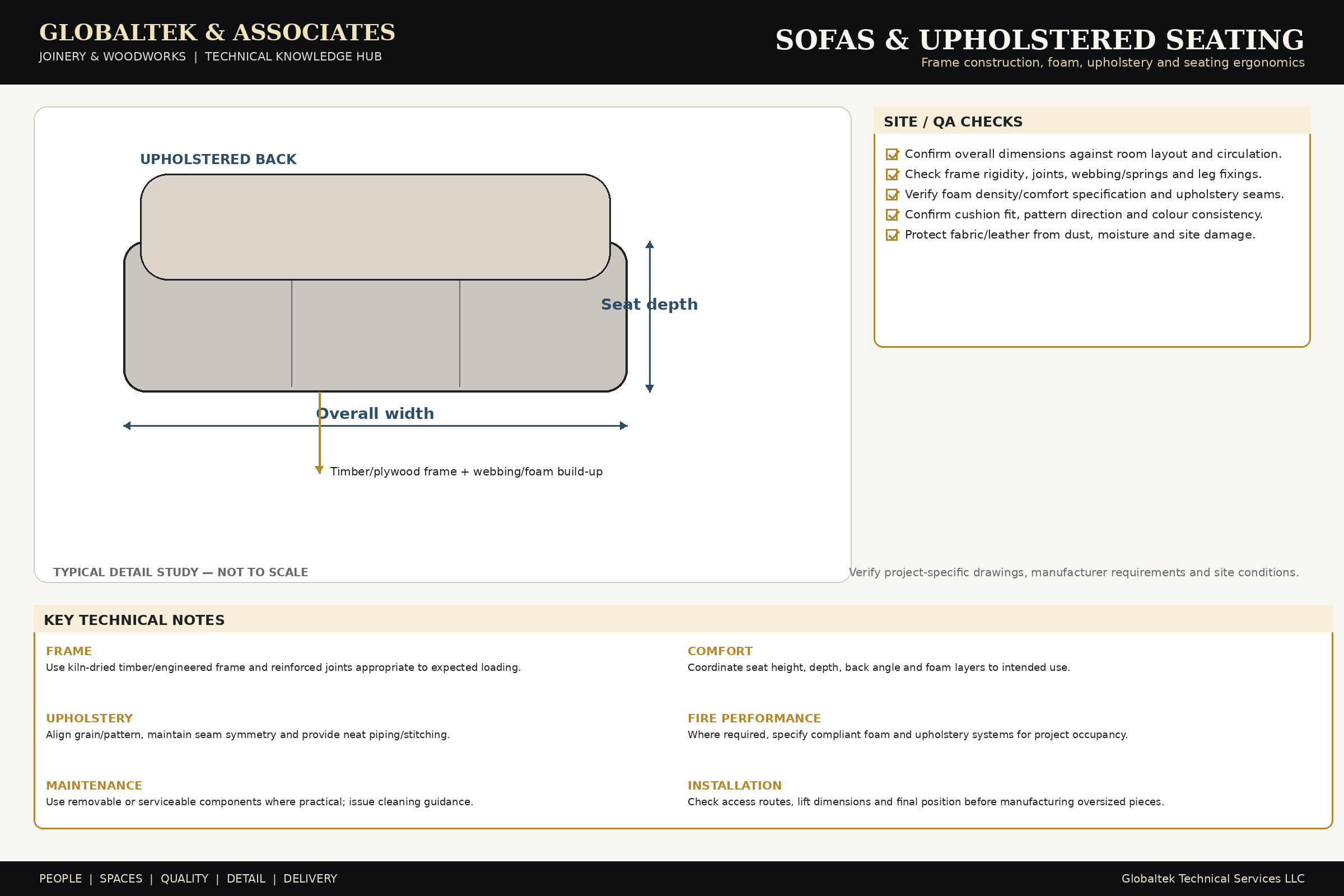

Sofas Upholstered Seating
Sofas Upholstered Seating: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for sofas upholstered seating before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Edges and exposed substrate are fully sealed where required
Failure to avoid
Overloading shelves or drawers beyond hardware capacity
Maintenance / long-term performance
Use cutting boards / heat protection on decorative worktops and surfaces
TECHNICAL CHAPTER 06

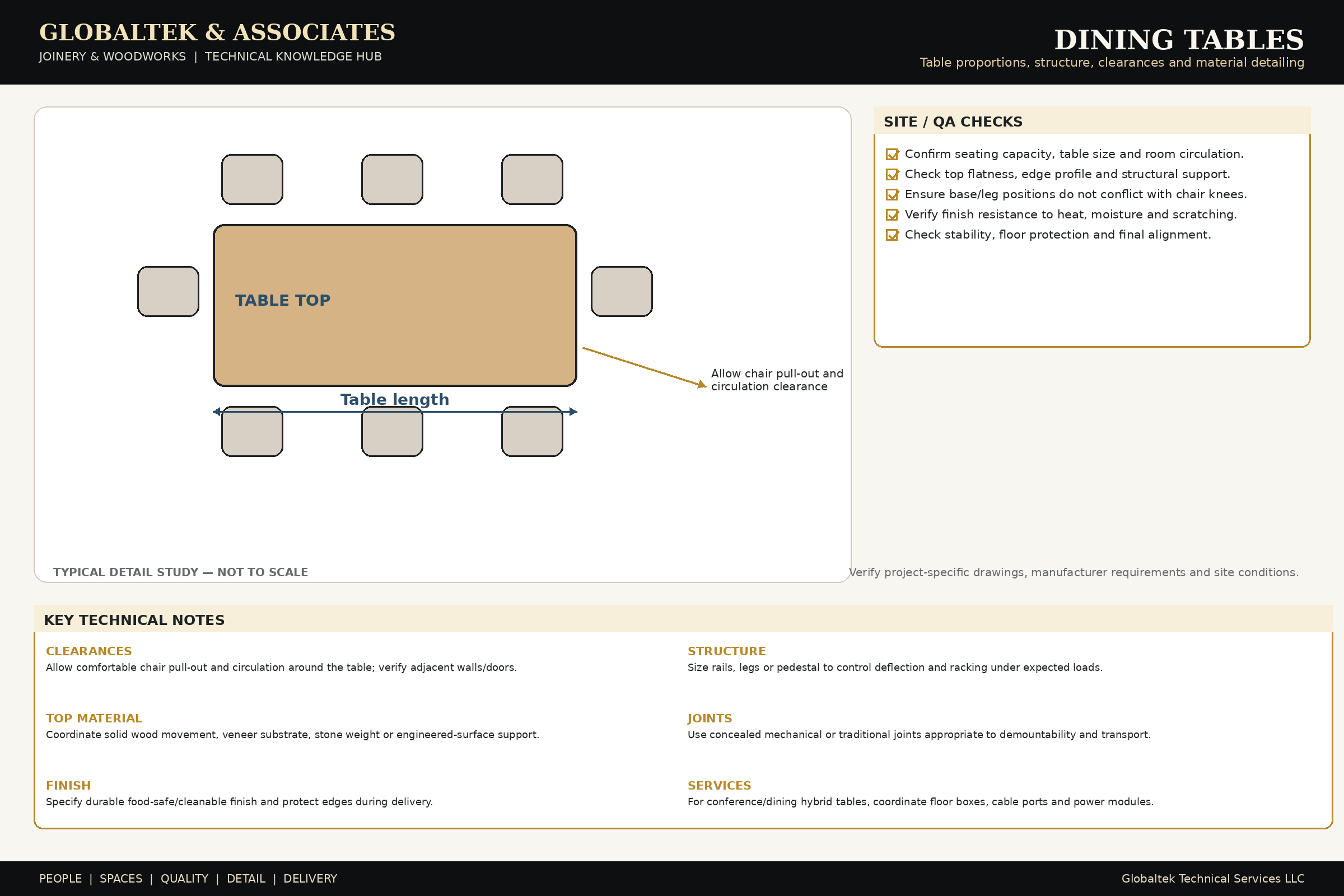

Dining Tables
Dining Tables: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for dining tables before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Doors, drawers, locks, lighting and accessories operate smoothly at handover
Failure to avoid
Installing cabinetry before wet trades are dry and the environment is conditioned
Maintenance / long-term performance
Retain spare laminate, veneer reference, paint code and hardware model for future repairs
TECHNICAL CHAPTER 07

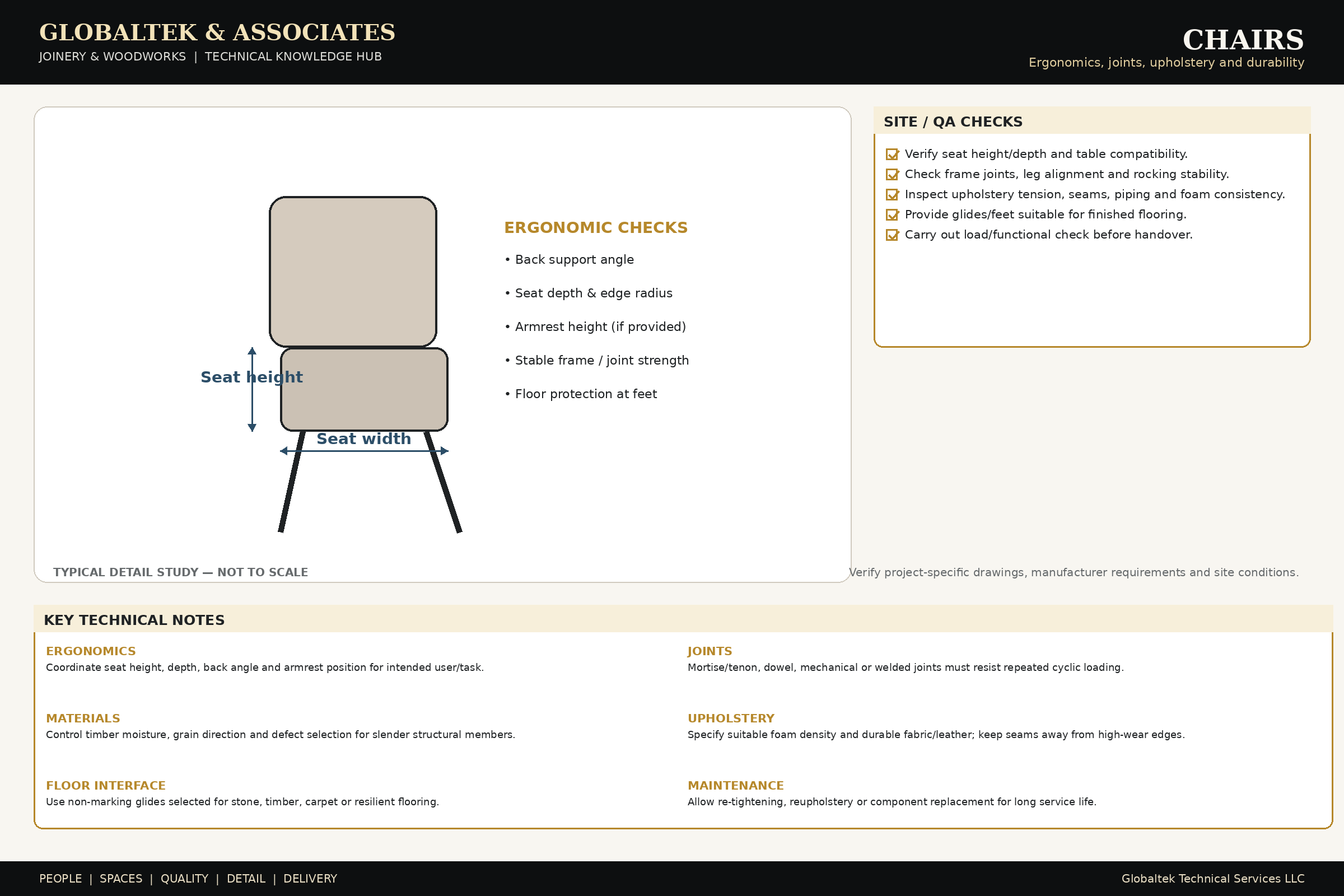

Chairs
Chairs: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for chairs before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Shop drawings match final site dimensions and appliance / MEP data
Failure to avoid
Fabricating before final site measurement
Maintenance / long-term performance
Clean with soft cloths and neutral products; avoid standing water and solvent cleaners
TECHNICAL CHAPTER 08
Bathroom Vanities
Bathroom Vanities: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for bathroom vanities before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Board, veneer, laminate and hardware match approved samples
Failure to avoid
Using low-grade substrate in humid or heavy-use areas
Maintenance / long-term performance
Adjust hinges and runners when doors begin to sag rather than forcing them
TECHNICAL CHAPTER 09
Laundry Units
Laundry Units: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for laundry units before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Cabinets are square, level, securely anchored and have consistent reveals
Failure to avoid
Ignoring edge sealing around sinks and sanitary zones
Maintenance / long-term performance
Repair damaged edge sealing quickly in kitchens, vanities and wet zones
TECHNICAL CHAPTER 10
Consoles
Consoles: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for consoles before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Veneer grain / colour sequencing is coherent across adjacent panels
Failure to avoid
Mixing veneer sheets without sequencing grain and tone
Maintenance / long-term performance
Maintain indoor humidity within a stable range to reduce movement and warping
TECHNICAL CHAPTER 11

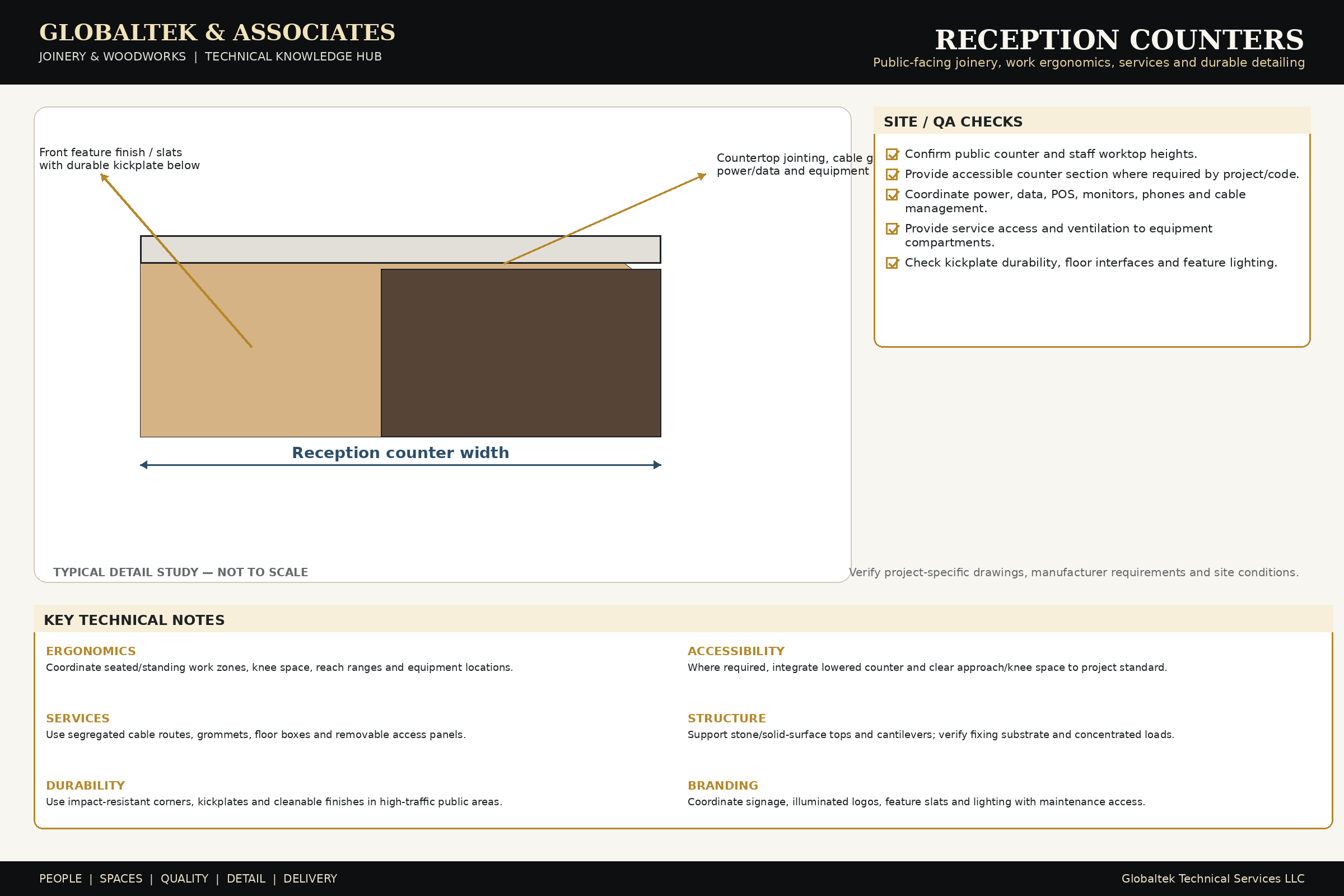

Reception Counters
Reception Counters: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for reception counters before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Edges and exposed substrate are fully sealed where required
Failure to avoid
Overloading shelves or drawers beyond hardware capacity
Maintenance / long-term performance
Use cutting boards / heat protection on decorative worktops and surfaces
TECHNICAL CHAPTER 12
Wall Claddings Panelling
Wall Claddings Panelling: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for wall claddings panelling before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Doors, drawers, locks, lighting and accessories operate smoothly at handover
Failure to avoid
Installing cabinetry before wet trades are dry and the environment is conditioned
Maintenance / long-term performance
Retain spare laminate, veneer reference, paint code and hardware model for future repairs
TECHNICAL CHAPTER 13

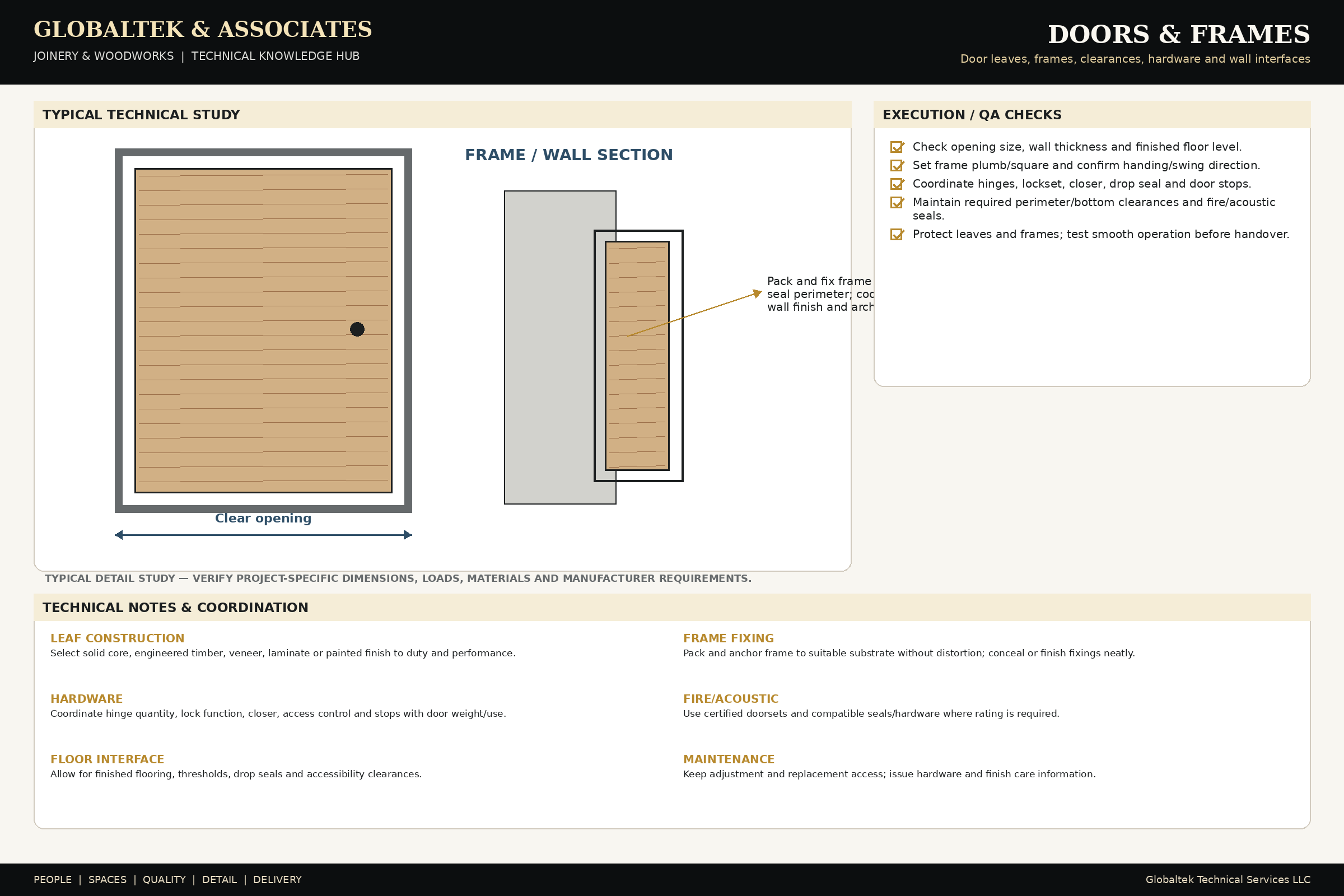

Doors Frames
Doors Frames: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for doors frames before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Shop drawings match final site dimensions and appliance / MEP data
Failure to avoid
Fabricating before final site measurement
Maintenance / long-term performance
Clean with soft cloths and neutral products; avoid standing water and solvent cleaners
TECHNICAL CHAPTER 14

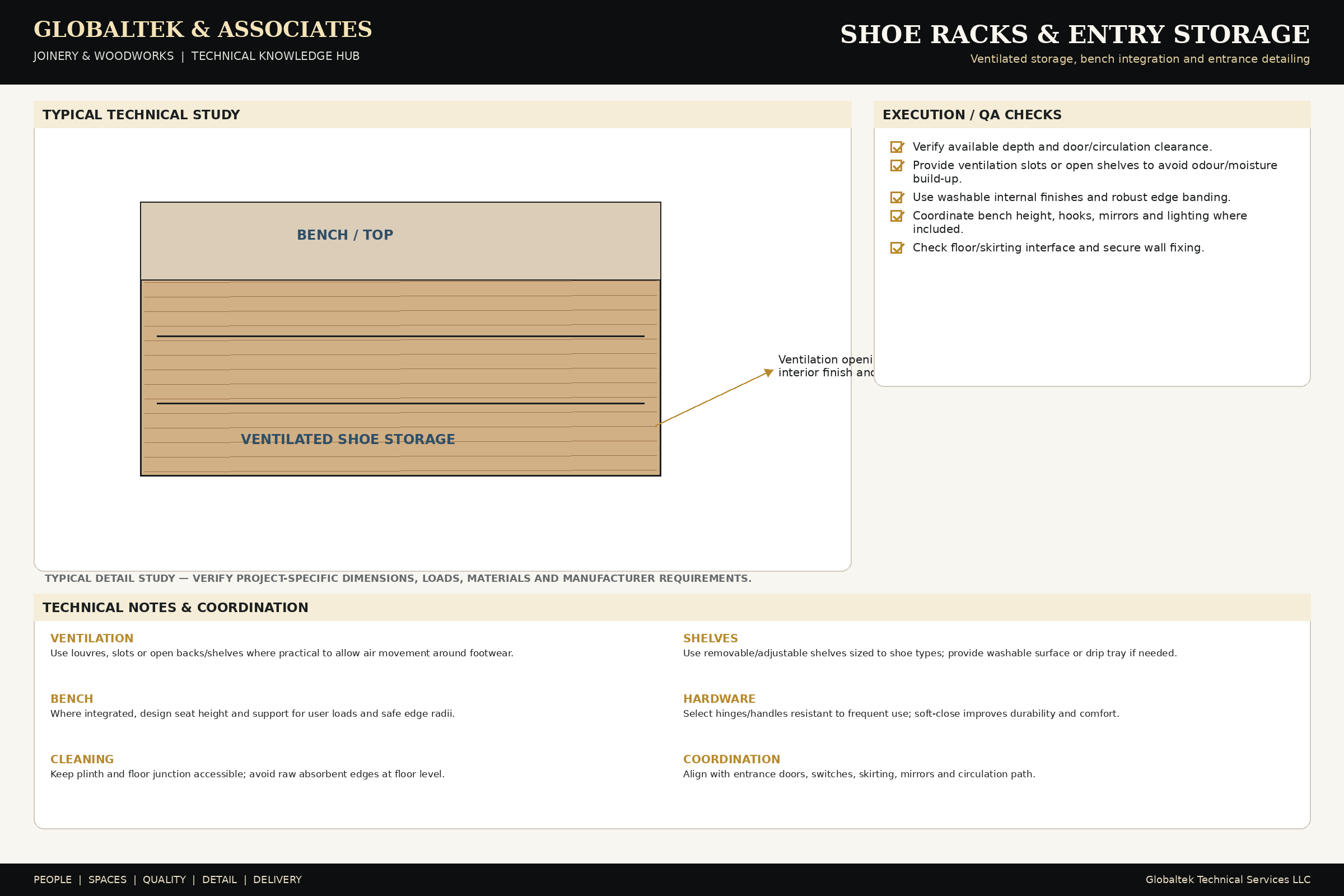

Shoe Racks Entry Storage
Shoe Racks Entry Storage: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for shoe racks entry storage before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Board, veneer, laminate and hardware match approved samples
Failure to avoid
Using low-grade substrate in humid or heavy-use areas
Maintenance / long-term performance
Adjust hinges and runners when doors begin to sag rather than forcing them
TECHNICAL CHAPTER 15
Office Desks Workstations
Office Desks Workstations: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for office desks workstations before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Cabinets are square, level, securely anchored and have consistent reveals
Failure to avoid
Ignoring edge sealing around sinks and sanitary zones
Maintenance / long-term performance
Repair damaged edge sealing quickly in kitchens, vanities and wet zones
TECHNICAL CHAPTER 16
Shelving Bookcases
Shelving Bookcases: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for shelving bookcases before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Veneer grain / colour sequencing is coherent across adjacent panels
Failure to avoid
Mixing veneer sheets without sequencing grain and tone
Maintenance / long-term performance
Maintain indoor humidity within a stable range to reduce movement and warping
TECHNICAL CHAPTER 17

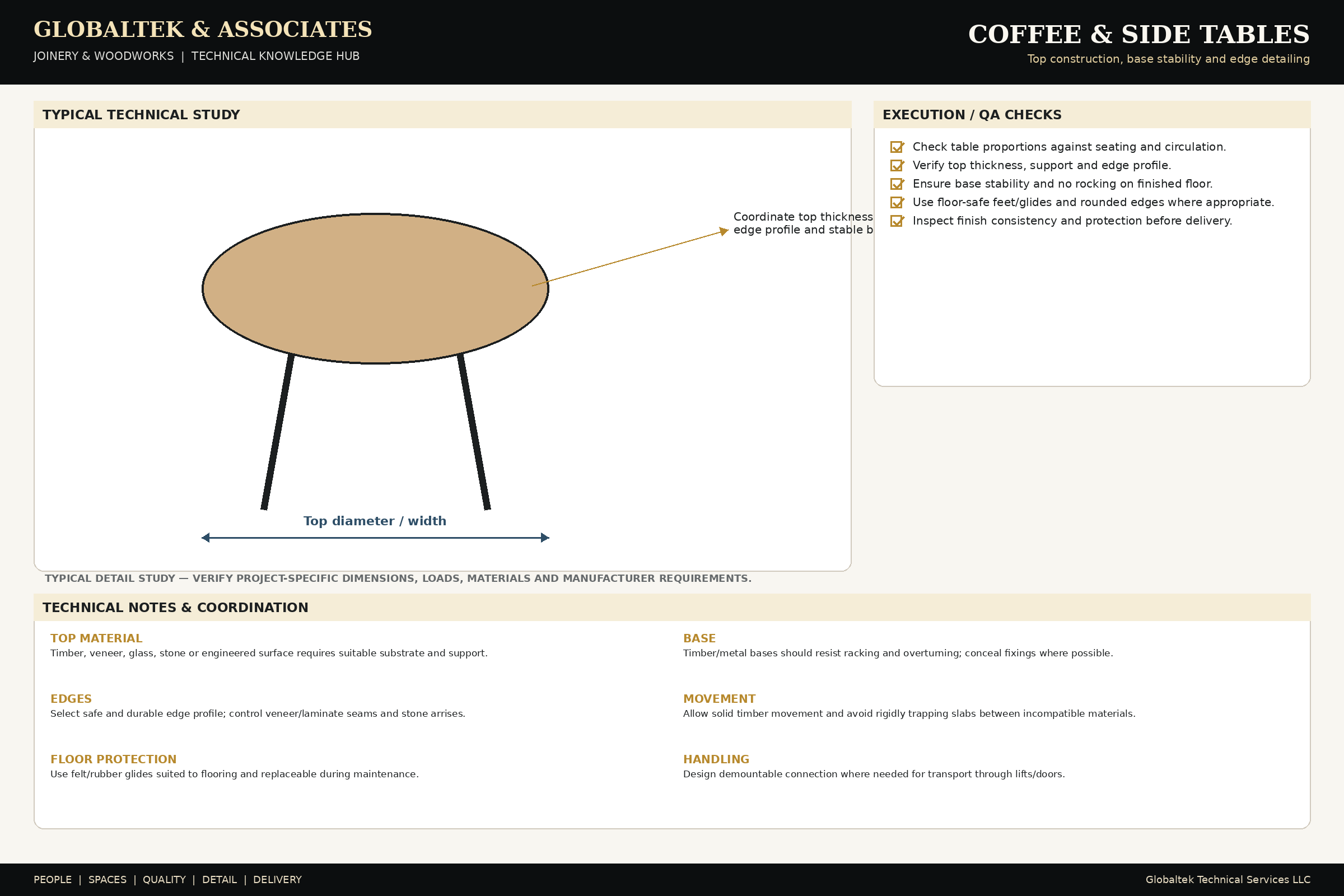

Coffee Side Tables
Coffee Side Tables: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for coffee side tables before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Edges and exposed substrate are fully sealed where required
Failure to avoid
Overloading shelves or drawers beyond hardware capacity
Maintenance / long-term performance
Use cutting boards / heat protection on decorative worktops and surfaces
TECHNICAL CHAPTER 18
Dressing Tables Makeup Units
Dressing Tables Makeup Units: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for dressing tables makeup units before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Doors, drawers, locks, lighting and accessories operate smoothly at handover
Failure to avoid
Installing cabinetry before wet trades are dry and the environment is conditioned
Maintenance / long-term performance
Retain spare laminate, veneer reference, paint code and hardware model for future repairs
TECHNICAL CHAPTER 19
Bars Minibars
Bars Minibars: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for bars minibars before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Shop drawings match final site dimensions and appliance / MEP data
Failure to avoid
Fabricating before final site measurement
Maintenance / long-term performance
Clean with soft cloths and neutral products; avoid standing water and solvent cleaners
TECHNICAL CHAPTER 20
Retail Display Units
Retail Display Units: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for retail display units before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Board, veneer, laminate and hardware match approved samples
Failure to avoid
Using low-grade substrate in humid or heavy-use areas
Maintenance / long-term performance
Adjust hinges and runners when doors begin to sag rather than forcing them
TECHNICAL CHAPTER 21
Banquette Bench Seating
Banquette Bench Seating: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for banquette bench seating before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Cabinets are square, level, securely anchored and have consistent reveals
Failure to avoid
Ignoring edge sealing around sinks and sanitary zones
Maintenance / long-term performance
Repair damaged edge sealing quickly in kitchens, vanities and wet zones
TECHNICAL CHAPTER 22
Staircase Timber Works
Staircase Timber Works: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for staircase timber works before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Veneer grain / colour sequencing is coherent across adjacent panels
Failure to avoid
Mixing veneer sheets without sequencing grain and tone
Maintenance / long-term performance
Maintain indoor humidity within a stable range to reduce movement and warping
TECHNICAL CHAPTER 23
Decorative Screens Slats
Decorative Screens Slats: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for decorative screens slats before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Edges and exposed substrate are fully sealed where required
Failure to avoid
Overloading shelves or drawers beyond hardware capacity
Maintenance / long-term performance
Use cutting boards / heat protection on decorative worktops and surfaces
TECHNICAL CHAPTER 24

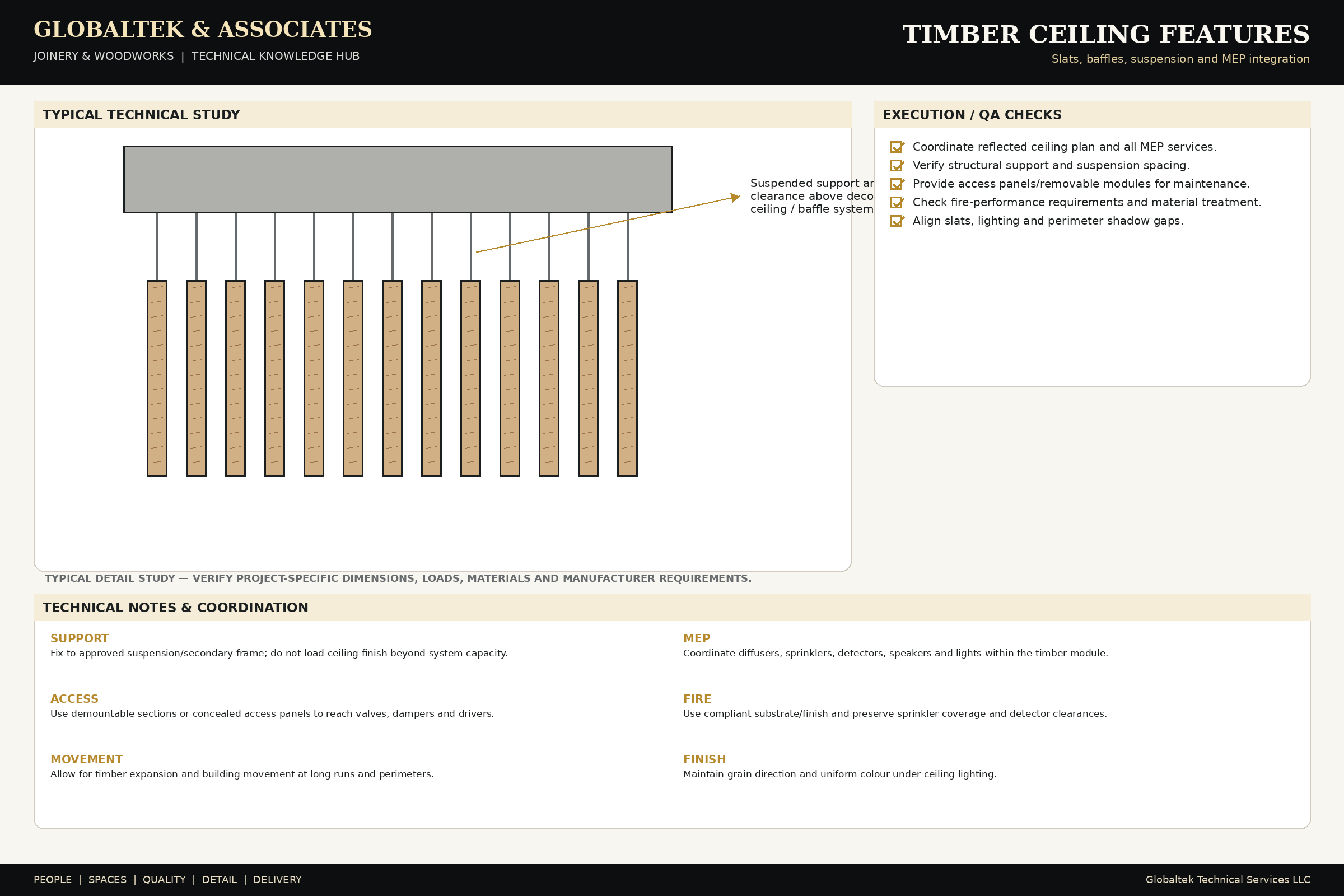

Timber Ceiling Features
Timber Ceiling Features: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for timber ceiling features before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Doors, drawers, locks, lighting and accessories operate smoothly at handover
Failure to avoid
Installing cabinetry before wet trades are dry and the environment is conditioned
Maintenance / long-term performance
Retain spare laminate, veneer reference, paint code and hardware model for future repairs
TECHNICAL CHAPTER 25
Storage Utility Cabinets
Storage Utility Cabinets: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for storage utility cabinets before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Shop drawings match final site dimensions and appliance / MEP data
Failure to avoid
Fabricating before final site measurement
Maintenance / long-term performance
Clean with soft cloths and neutral products; avoid standing water and solvent cleaners
TECHNICAL CHAPTER 26
Custom Loose Furniture
Custom Loose Furniture: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for custom loose furniture before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Board, veneer, laminate and hardware match approved samples
Failure to avoid
Using low-grade substrate in humid or heavy-use areas
Maintenance / long-term performance
Adjust hinges and runners when doors begin to sag rather than forcing them
TECHNICAL CHAPTER 27
Pantry Tea Point
Pantry Tea Point: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for pantry tea point before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Cabinets are square, level, securely anchored and have consistent reveals
Failure to avoid
Ignoring edge sealing around sinks and sanitary zones
Maintenance / long-term performance
Repair damaged edge sealing quickly in kitchens, vanities and wet zones
TECHNICAL CHAPTER 28
Lockers Changing Room Joinery
Lockers Changing Room Joinery: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for lockers changing room joinery before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Veneer grain / colour sequencing is coherent across adjacent panels
Failure to avoid
Mixing veneer sheets without sequencing grain and tone
Maintenance / long-term performance
Maintain indoor humidity within a stable range to reduce movement and warping
TECHNICAL CHAPTER 29

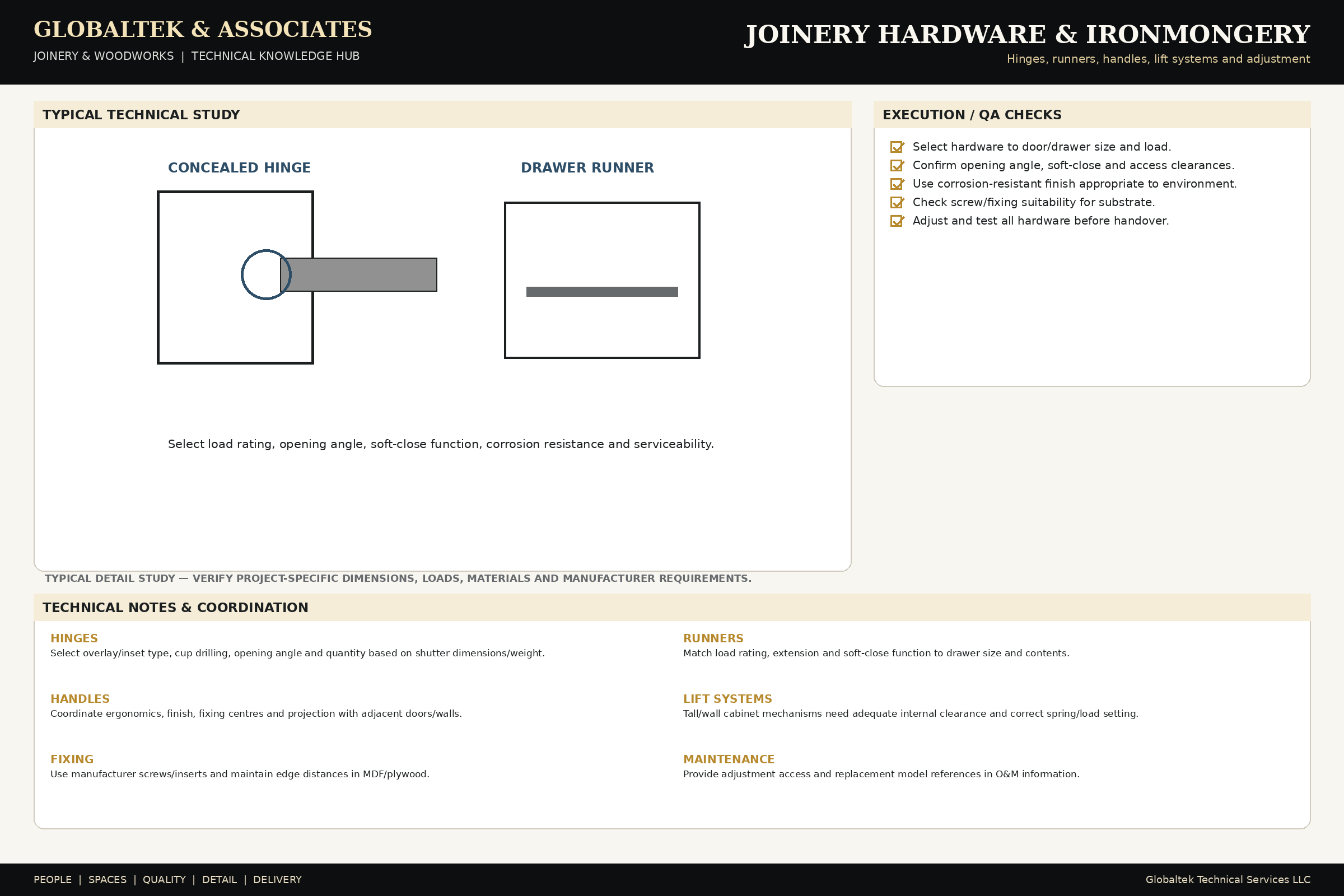

Hardware Ironmongery
Hardware Ironmongery: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for hardware ironmongery before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Edges and exposed substrate are fully sealed where required
Failure to avoid
Overloading shelves or drawers beyond hardware capacity
Maintenance / long-term performance
Use cutting boards / heat protection on decorative worktops and surfaces
TECHNICAL CHAPTER 30

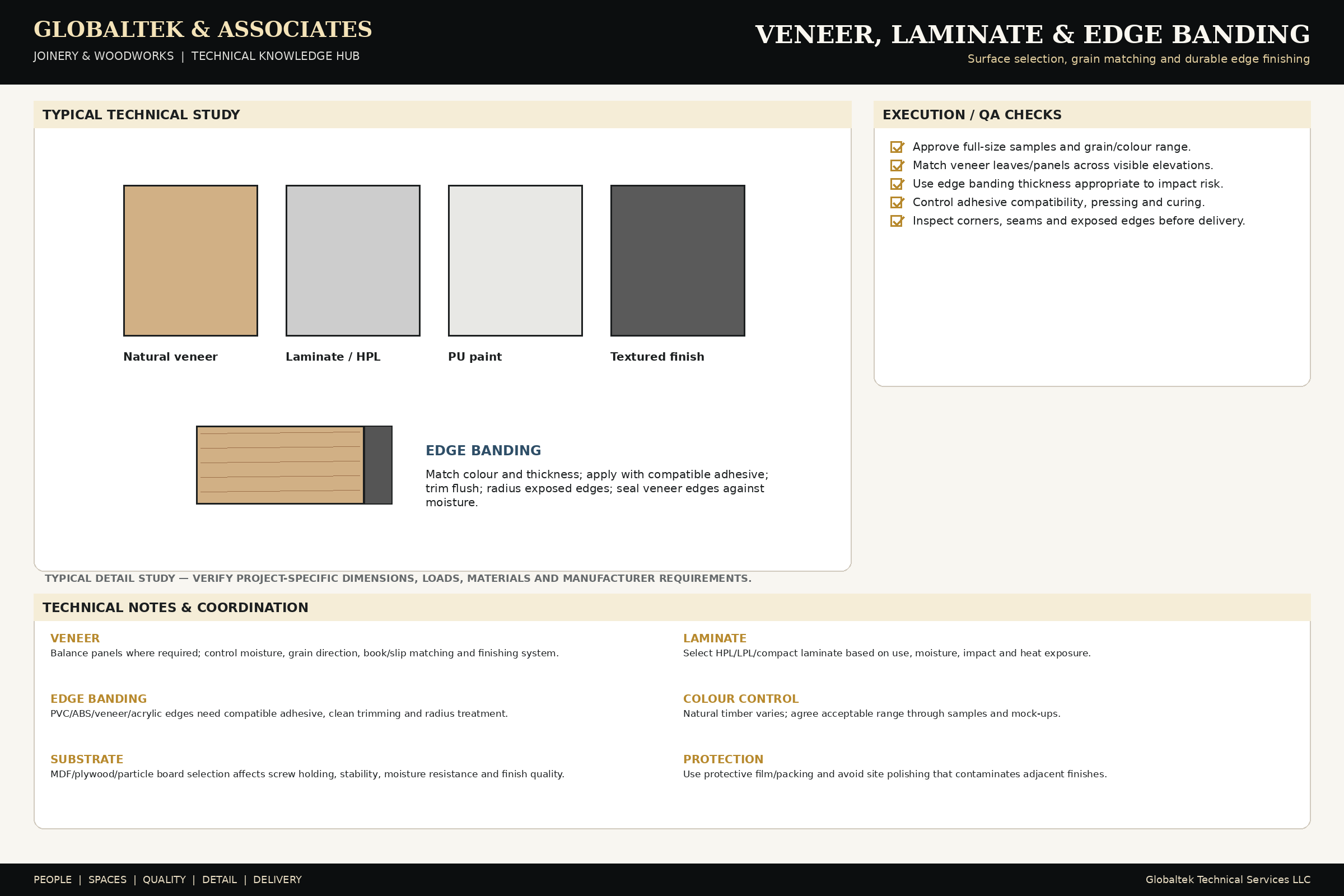

Veneers Laminates Edge Banding
Veneers Laminates Edge Banding: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for veneers laminates edge banding before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Doors, drawers, locks, lighting and accessories operate smoothly at handover
Failure to avoid
Installing cabinetry before wet trades are dry and the environment is conditioned
Maintenance / long-term performance
Retain spare laminate, veneer reference, paint code and hardware model for future repairs
TECHNICAL CHAPTER 31

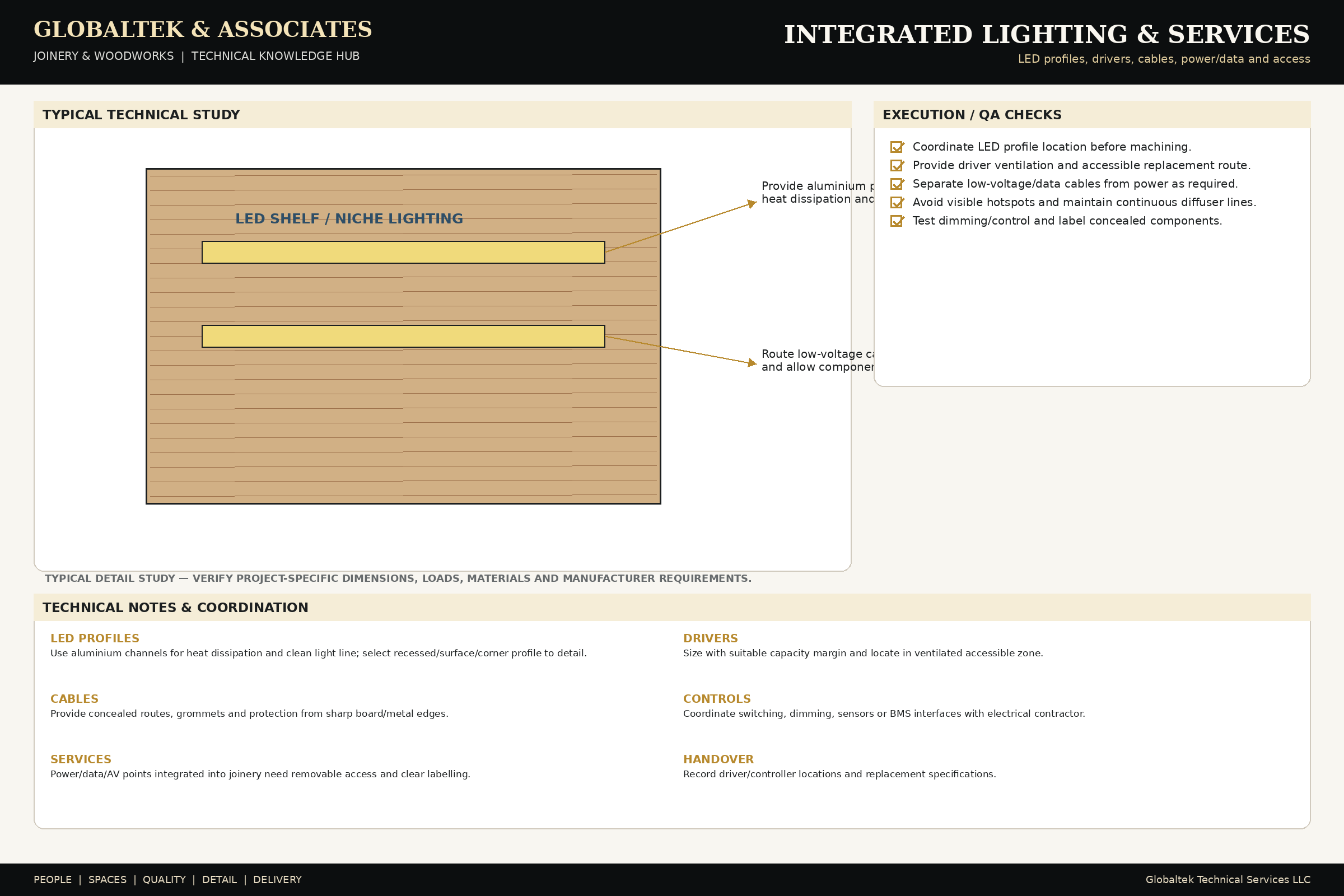

Integrated Lighting Services
Integrated Lighting Services: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for integrated lighting services before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Shop drawings match final site dimensions and appliance / MEP data
Failure to avoid
Fabricating before final site measurement
Maintenance / long-term performance
Clean with soft cloths and neutral products; avoid standing water and solvent cleaners
TECHNICAL CHAPTER 32

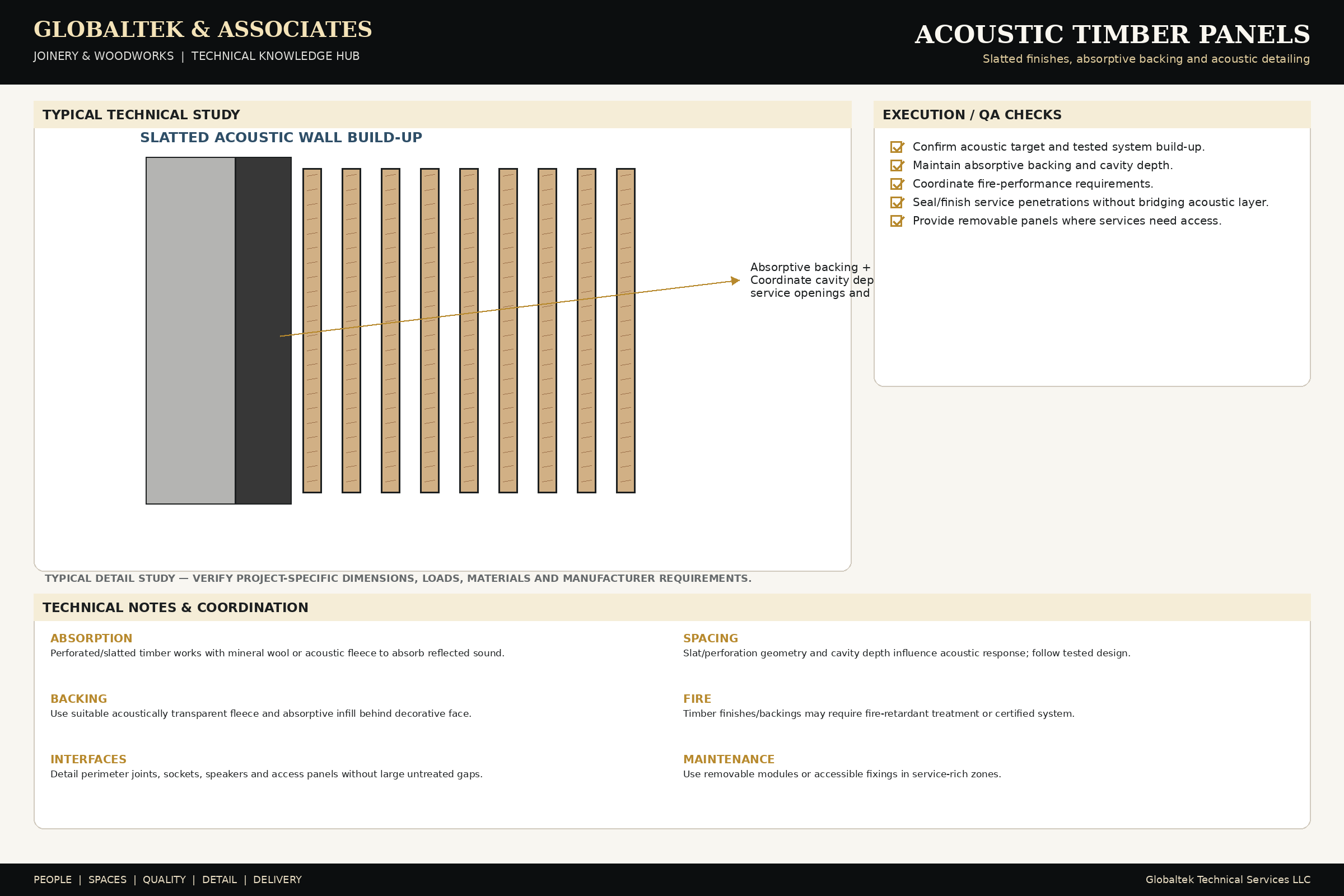

Acoustic Timber Panels
Acoustic Timber Panels: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for acoustic timber panels before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Board, veneer, laminate and hardware match approved samples
Failure to avoid
Using low-grade substrate in humid or heavy-use areas
Maintenance / long-term performance
Adjust hinges and runners when doors begin to sag rather than forcing them
TECHNICAL CHAPTER 33

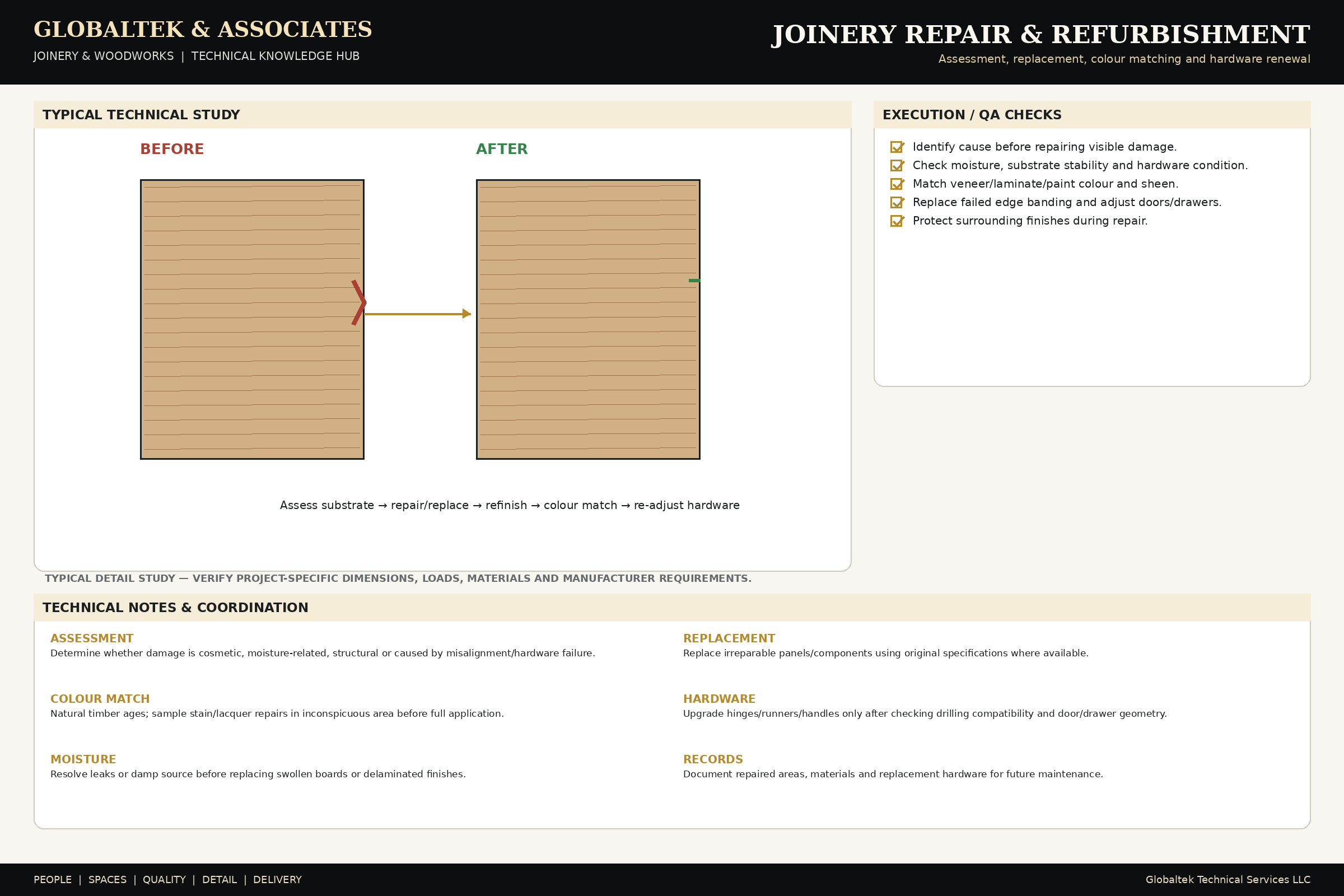

Repair Refurbishment
Repair Refurbishment: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for repair refurbishment before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Cabinets are square, level, securely anchored and have consistent reveals
Failure to avoid
Ignoring edge sealing around sinks and sanitary zones
Maintenance / long-term performance
Repair damaged edge sealing quickly in kitchens, vanities and wet zones
TECHNICAL CHAPTER 34
Mirror Integrated Joinery
Mirror Integrated Joinery: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for mirror integrated joinery before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Veneer grain / colour sequencing is coherent across adjacent panels
Failure to avoid
Mixing veneer sheets without sequencing grain and tone
Maintenance / long-term performance
Maintain indoor humidity within a stable range to reduce movement and warping
TECHNICAL CHAPTER 35
Hospitality Casegoods
Hospitality Casegoods: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for hospitality casegoods before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Edges and exposed substrate are fully sealed where required
Failure to avoid
Overloading shelves or drawers beyond hardware capacity
Maintenance / long-term performance
Use cutting boards / heat protection on decorative worktops and surfaces
TECHNICAL CHAPTER 36
Outdoor Exterior Joinery
Outdoor Exterior Joinery: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for outdoor exterior joinery before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Doors, drawers, locks, lighting and accessories operate smoothly at handover
Failure to avoid
Installing cabinetry before wet trades are dry and the environment is conditioned
Maintenance / long-term performance
Retain spare laminate, veneer reference, paint code and hardware model for future repairs
TECHNICAL CHAPTER 37
Under Stair Storage
Under Stair Storage: Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Design intent
Define the performance and construction intent for under stair storage before fabrication or installation. Read the drawing together with the approved project specification, manufacturer data and adjoining details.
Coordination
Coordinate core materials, grain/veneer direction, hardware, CNC machining, edge treatment, joints, finish build-up, fixing, service access and factory/site tolerances.
Inspection / QA
Shop drawings match final site dimensions and appliance / MEP data
Failure to avoid
Fabricating before final site measurement
Maintenance / long-term performance
Clean with soft cloths and neutral products; avoid standing water and solvent cleaners
05 · QA/QC
Inspect before concealment and before handover.
01Shop drawings match final site dimensions and appliance / MEP data
02Board, veneer, laminate and hardware match approved samples
03Cabinets are square, level, securely anchored and have consistent reveals
04Veneer grain / colour sequencing is coherent across adjacent panels
05Edges and exposed substrate are fully sealed where required
06Doors, drawers, locks, lighting and accessories operate smoothly at handover
06 · COMMON FAILURES
Recognise the failure mechanism—not only the visible defect.
Failures to avoid
×Fabricating before final site measurement
×Using low-grade substrate in humid or heavy-use areas
×Ignoring edge sealing around sinks and sanitary zones
×Mixing veneer sheets without sequencing grain and tone
×Overloading shelves or drawers beyond hardware capacity
×Installing cabinetry before wet trades are dry and the environment is conditioned

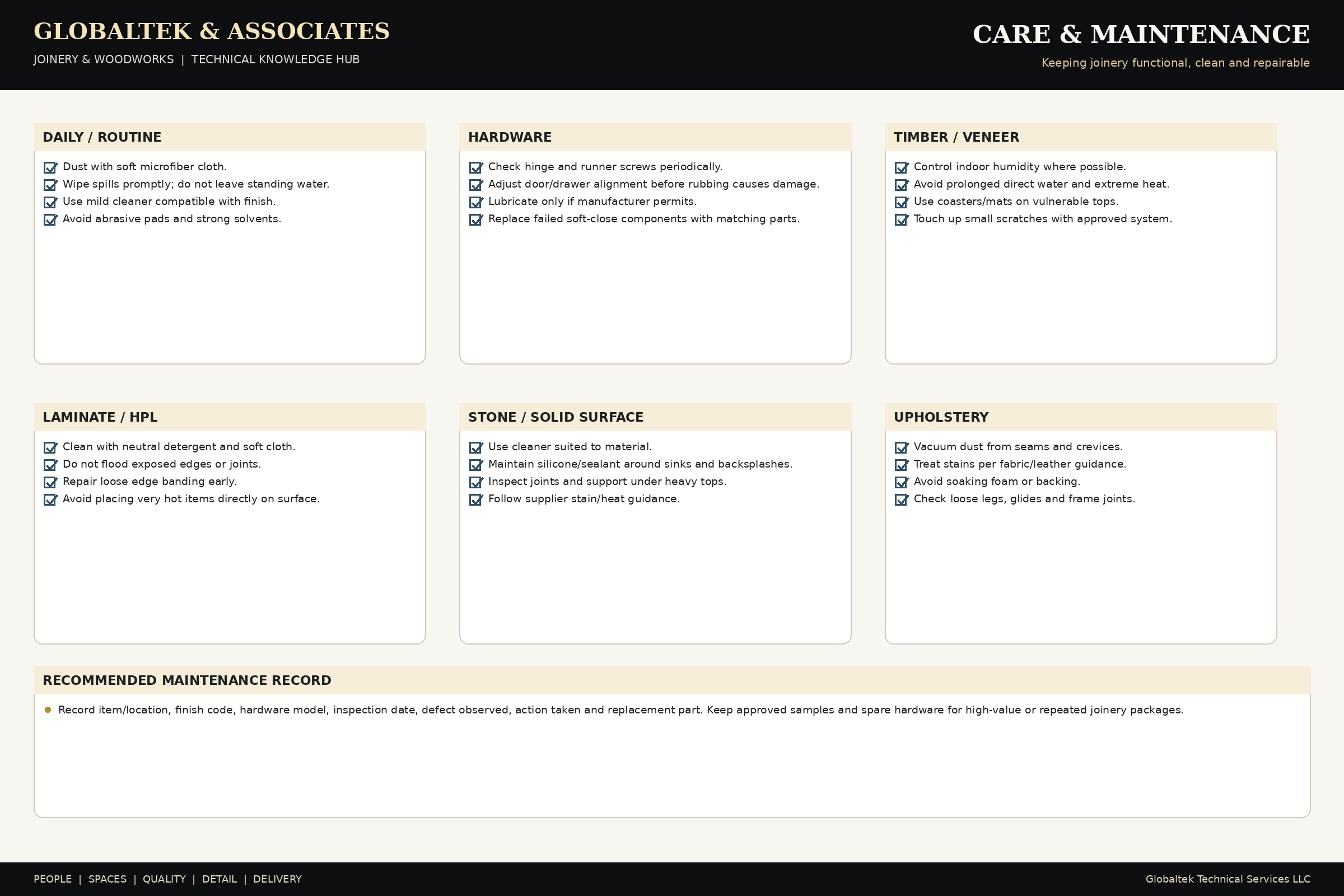

07 · MAINTENANCE & AFTERCARE
Design for access, repair and long-term performance.
Maintenance controls
✓Clean with soft cloths and neutral products; avoid standing water and solvent cleaners
✓Adjust hinges and runners when doors begin to sag rather than forcing them
✓Repair damaged edge sealing quickly in kitchens, vanities and wet zones
✓Maintain indoor humidity within a stable range to reduce movement and warping
✓Use cutting boards / heat protection on decorative worktops and surfaces
✓Retain spare laminate, veneer reference, paint code and hardware model for future repairs

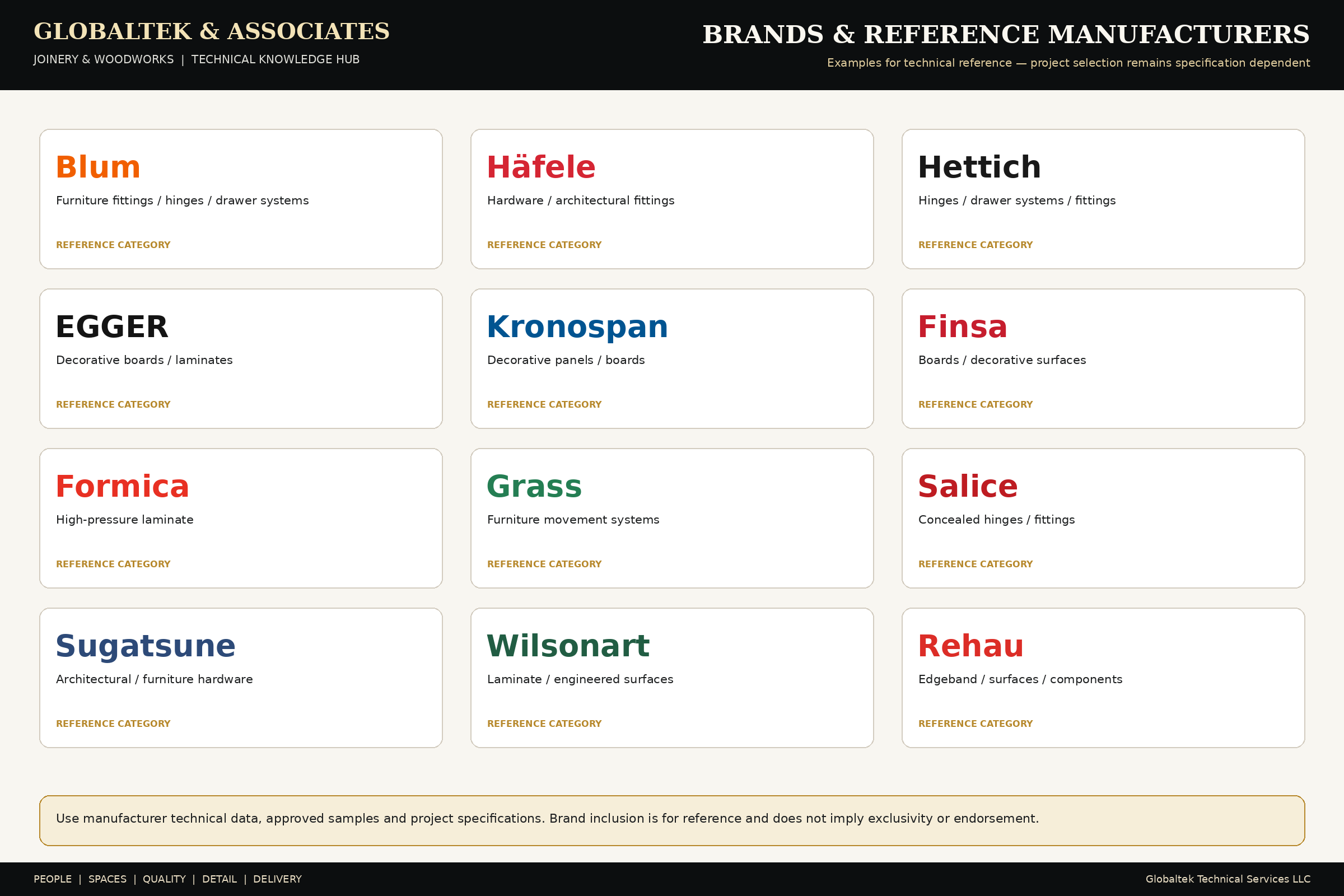

08 · STANDARDS & MANUFACTURER REFERENCES
Use the latest approved project documents and tested systems.
• Project-approved fire performance requirements for substrates and finishes
• EN 622 series for fibreboards / MDF and EN 312 for particleboards where specified
• EN 717-1 or equivalent formaldehyde-emission classification for wood-based panels where specified
• Manufacturer requirements for hardware, adhesives, coatings and compact laminates
• FSC / PEFC chain-of-custody where sustainable timber certification is required
• Local authority / Civil Defence requirements for fire-rated doors and decorative materials where applicable
Technical guidance is educational and indicative. Final design, dimensions, materials, installation details and acceptance criteria must follow the approved project documents, manufacturer instructions and the latest requirements of the relevant UAE authority, landlord, consultant and specialist engineer.
09 · COMPLETE IMAGE LIBRARY
50 high-resolution visuals assigned to this activity.
Each file remains separate and is mapped directly to its relevant section. Click any image to inspect it at full resolution.
HeroOverviewFundamentalsQA/QCFailuresMaintenanceStandards & Brands Stage 01 · Measurements Site SurveyStage 02 · Shop Drawings DetailingStage 03 · Material Hardware ApprovalStage 04 · CNC MachiningStage 05 · Assembly FinishingStage 06 · Installation Handover 01 · Wardrobes02 · Kitchen Cabinets03 · Tv Media Units04 · Beds Headboards05 · Sofas Upholstered Seating06 · Dining Tables07 · Chairs08 · Bathroom Vanities09 · Laundry Units10 · Consoles11 · Reception Counters12 · Wall Claddings Panelling13 · Doors Frames14 · Shoe Racks Entry Storage15 · Office Desks Workstations16 · Shelving Bookcases17 · Coffee Side Tables18 · Dressing Tables Makeup Units19 · Bars Minibars20 · Retail Display Units21 · Banquette Bench Seating22 · Staircase Timber Works23 · Decorative Screens Slats24 · Timber Ceiling Features25 · Storage Utility Cabinets26 · Custom Loose Furniture27 · Pantry Tea Point28 · Lockers Changing Room Joinery29 · Hardware Ironmongery30 · Veneers Laminates Edge Banding31 · Integrated Lighting Services32 · Acoustic Timber Panels33 · Repair Refurbishment34 · Mirror Integrated Joinery35 · Hospitality Casegoods36 · Outdoor Exterior Joinery37 · Under Stair Storage
